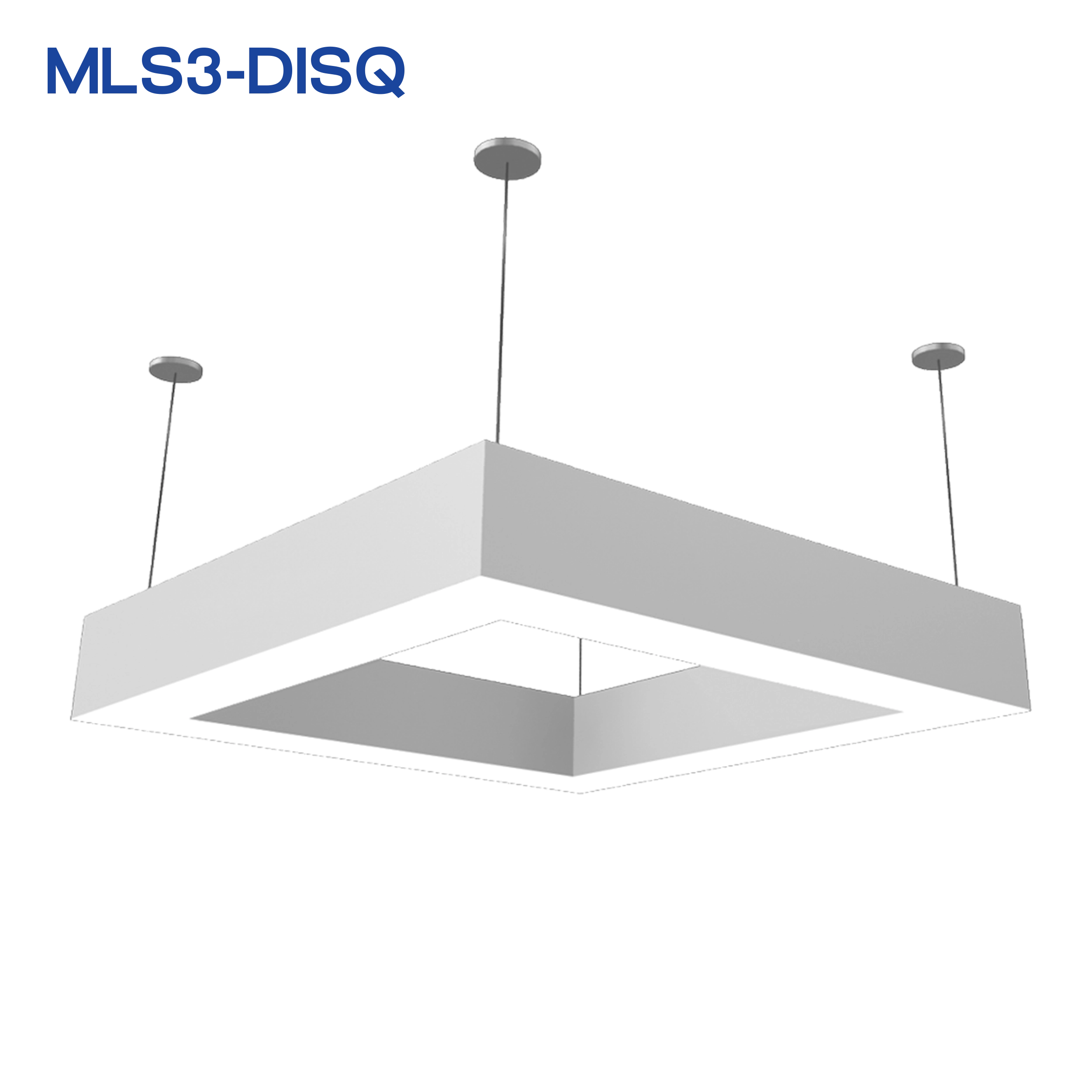

MLS3 SUSPENDED/SURFACE SQUARE

Direct-Indirect
Suspended / Surface Mount
25” / 31” / 36” / 47”– Up to 7200 lm

  • Extruded aluminum housings and mitered corners for perfectly constructed squares of light.

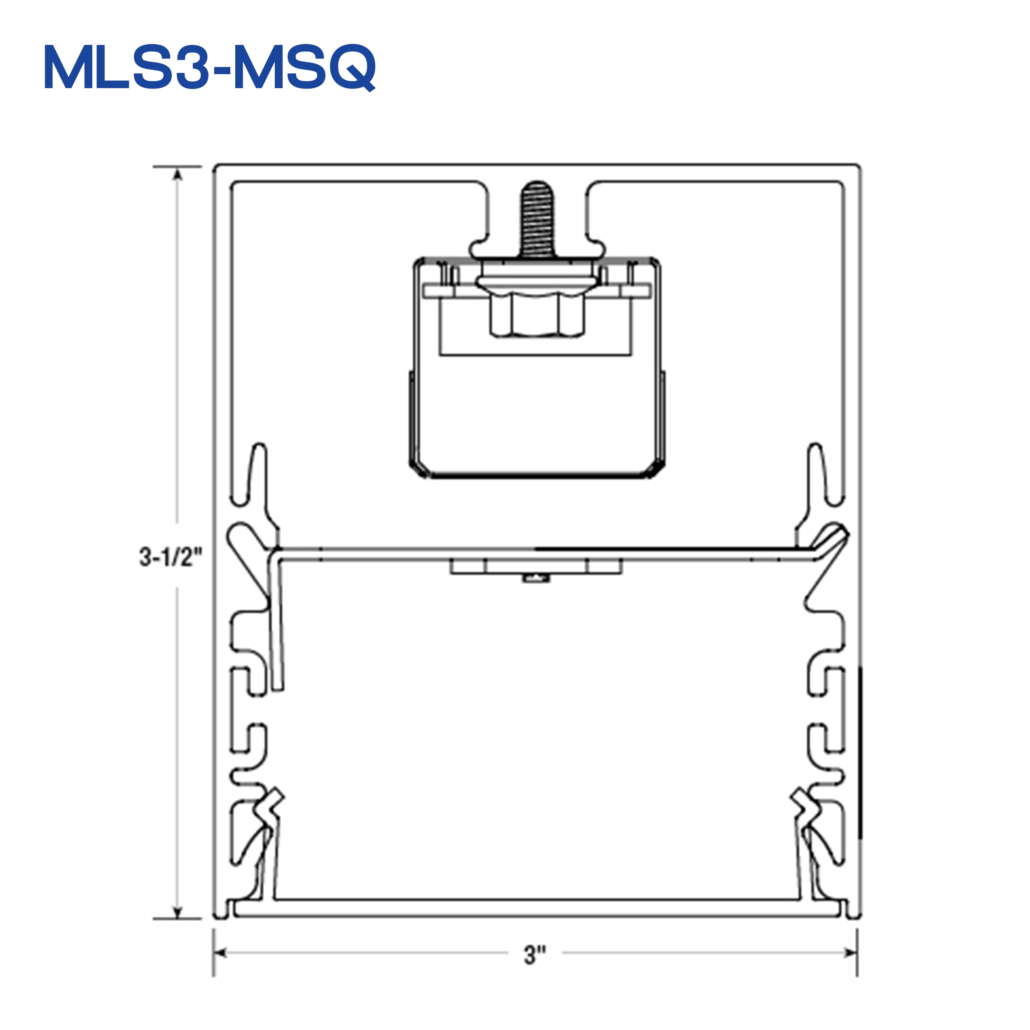

  • Narrow 3” wide profile.
  • Custom formulated high diffusion extruded acrylic lenses, mitered at the corners.
  • Non-glare matte-white polyester powder coating finish.
  • Fully illuminated square modules.
  • Dual directional illumination. Direct downlighting and indirect uplighting.
  • Standard squares of 25″, 31″, 36″, and 47″.
  • Custom sizes, custom shapes, custom patterns and grids available. Consult factory.
  • Proprietary formulated high diffusion extruded acrylic downlighting lens.
  • High performance batwing type uplighting lens.
  • Custom colors available.

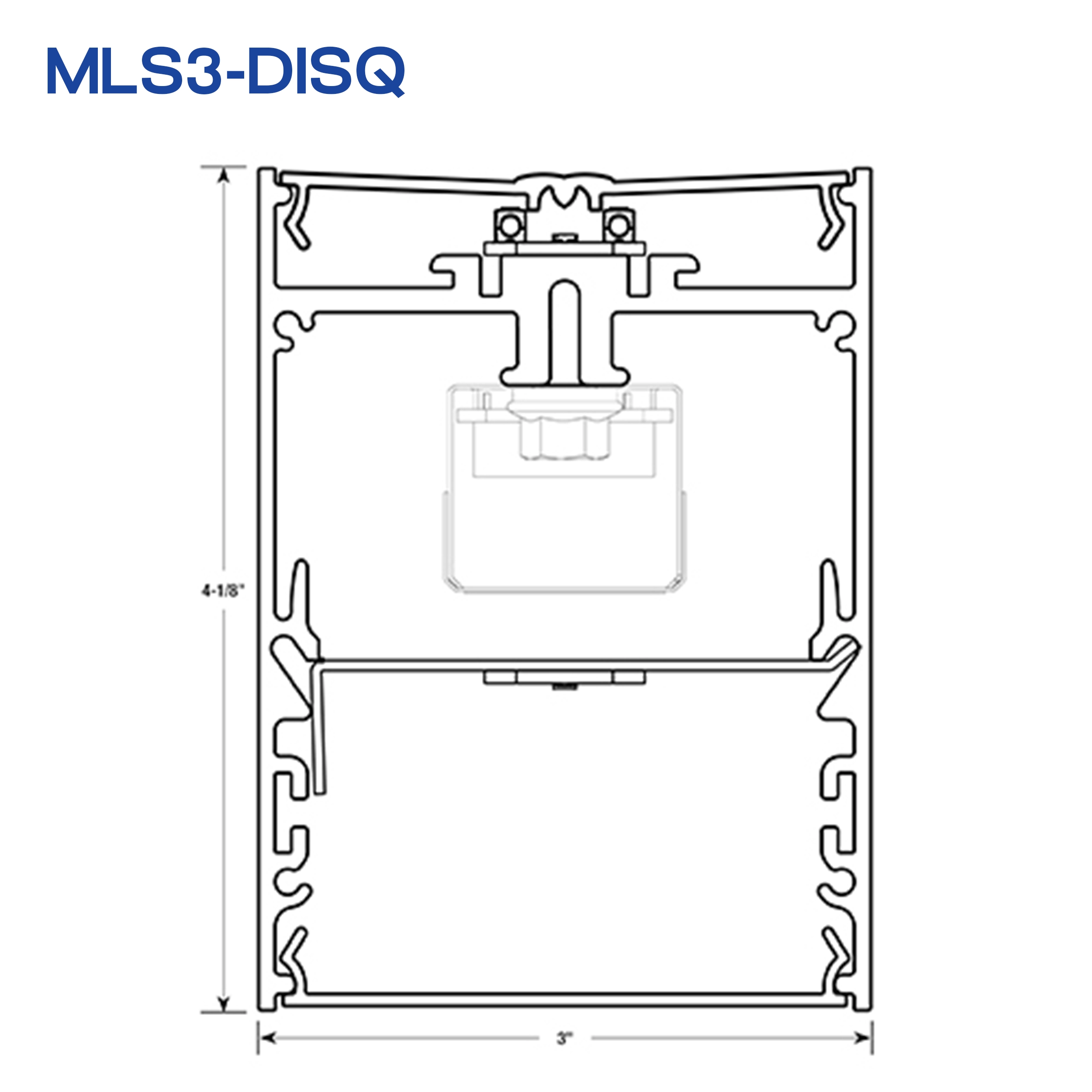

  • A new extrusion with a shallower overall height of just 4-1/8″.
  • A new custom designed batwing-type indirect diffuser.
  • Spreads light from the linear LED boards into two distinct side lobes.
  • When projected onto the ceiling the results are a very consistent and wide spread of indirect illumination.
  • New additional drop-down or pop-up diffuser options.
  • Cable mount from ceiling or direct surface mount.
  • Cataloged standard or custom set lumen packages.
  • 80 CRI standard. 90 CRI available.
  • Dimming down to 1% on 0-10V controls.
  • Fixture lumens per watt ratios up to 110 and 140.
  • Lighting controls and sensors.
  • Custom sizes and other shapes available.
  • American Made.
SPEC SHEET
