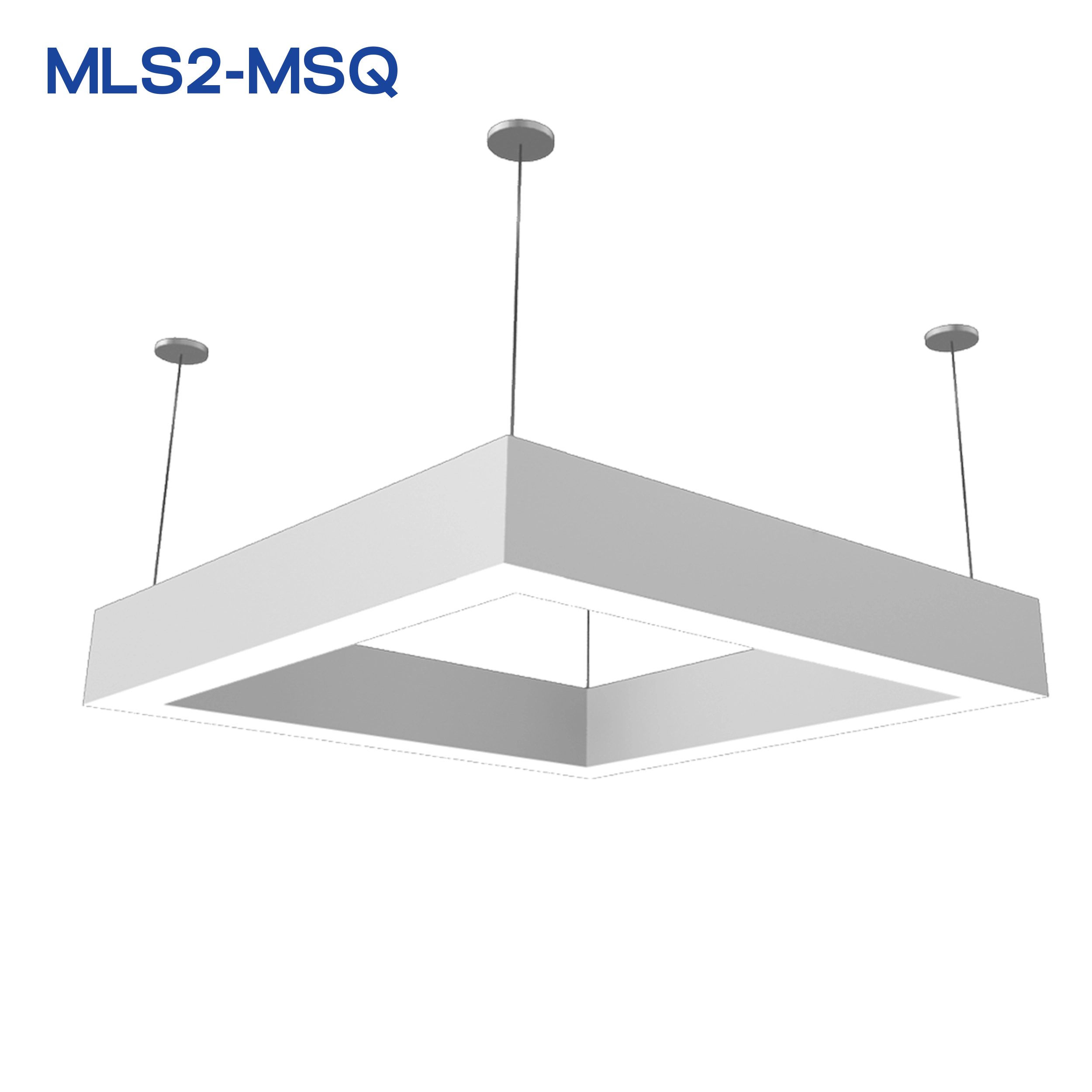

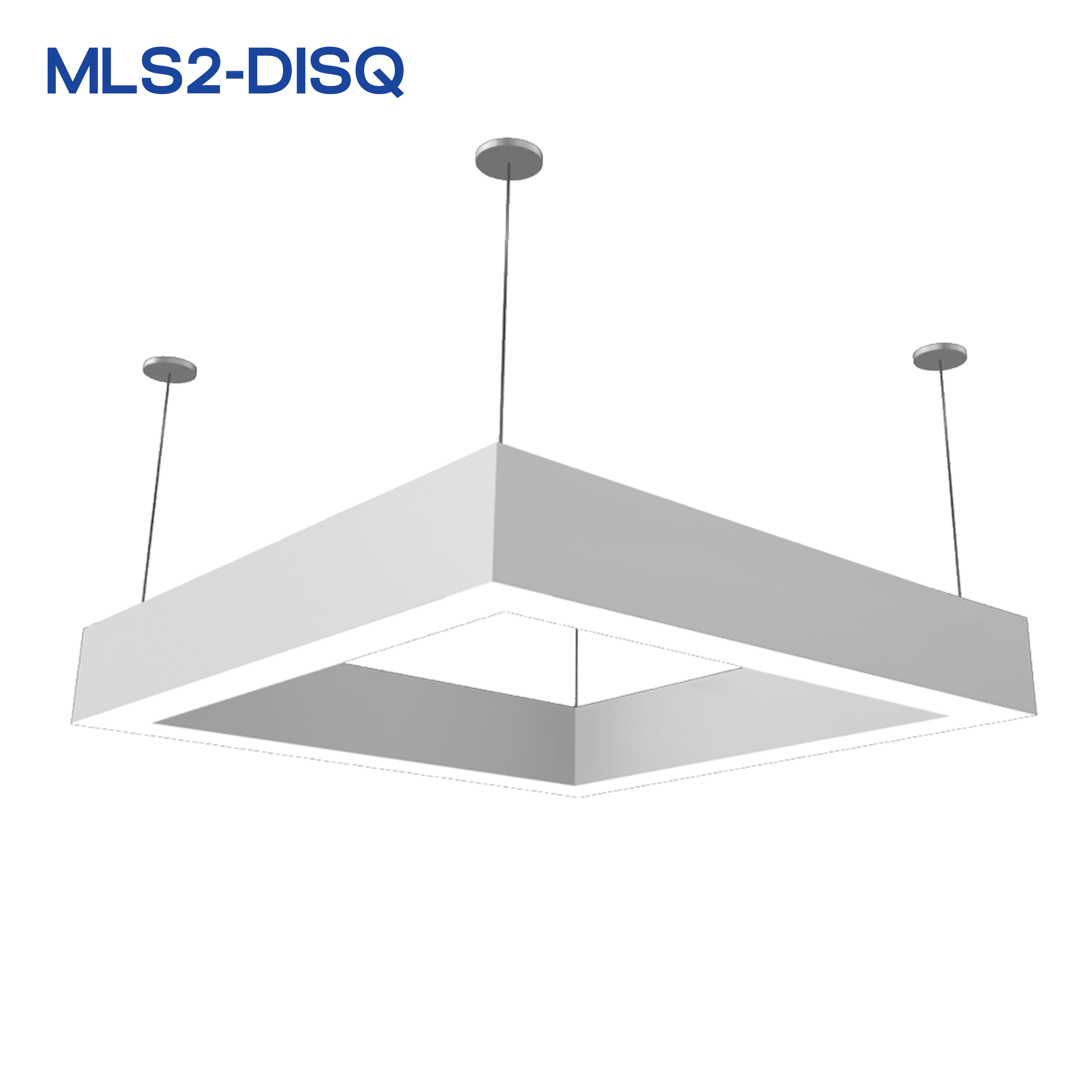

MLS2 SUSPENDED/SURFACE SQUARE
Direct-Indirect
Suspended / Surface Mount
24X24” / 30”X30” / 35”X35” / 46”X46”– Up to 7200 lm
- Extruded aluminum housings and mitered corners for perfectly constructed squares of light.

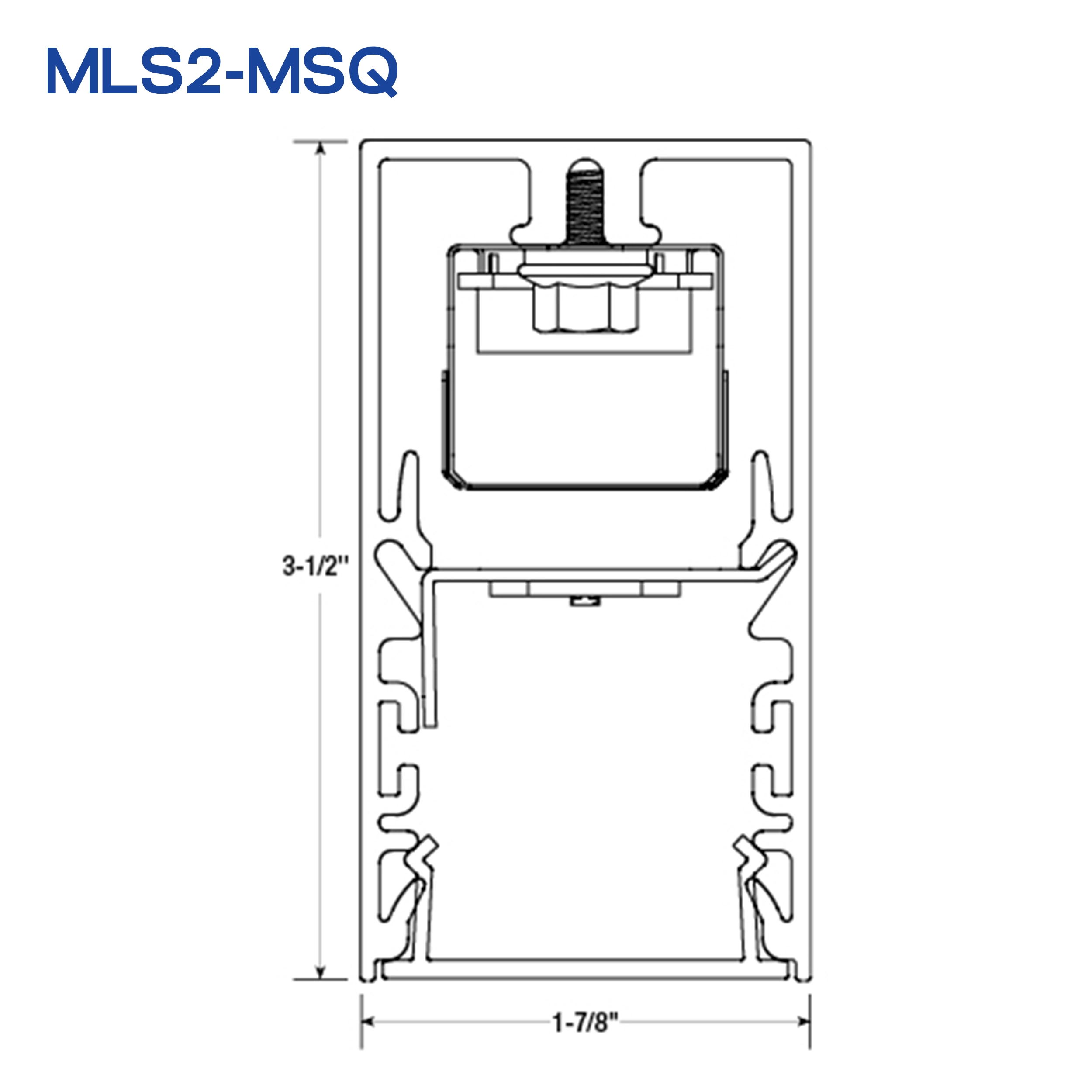

- Narrow 1 7/8” wide profile.
- Custom formulated high diffusion extruded acrylic lenses, mitered at the corners.
- Non-glare matte-white polyester powder coating finish.
- Fully illuminated square modules.
- Dual directional illumination. Direct downlighting and indirect uplighting.
- Standard squares of 24″, 30″, 35″, and 46″.
- Custom sizes, custom shapes, custom patterns and grids available. Consult factory.
- Proprietary formulated high diffusion extruded acrylic downlighting lens.
- High performance batwing type uplighting lens.
- Custom colors available.
- Cable mount from ceiling or direct surface mount.

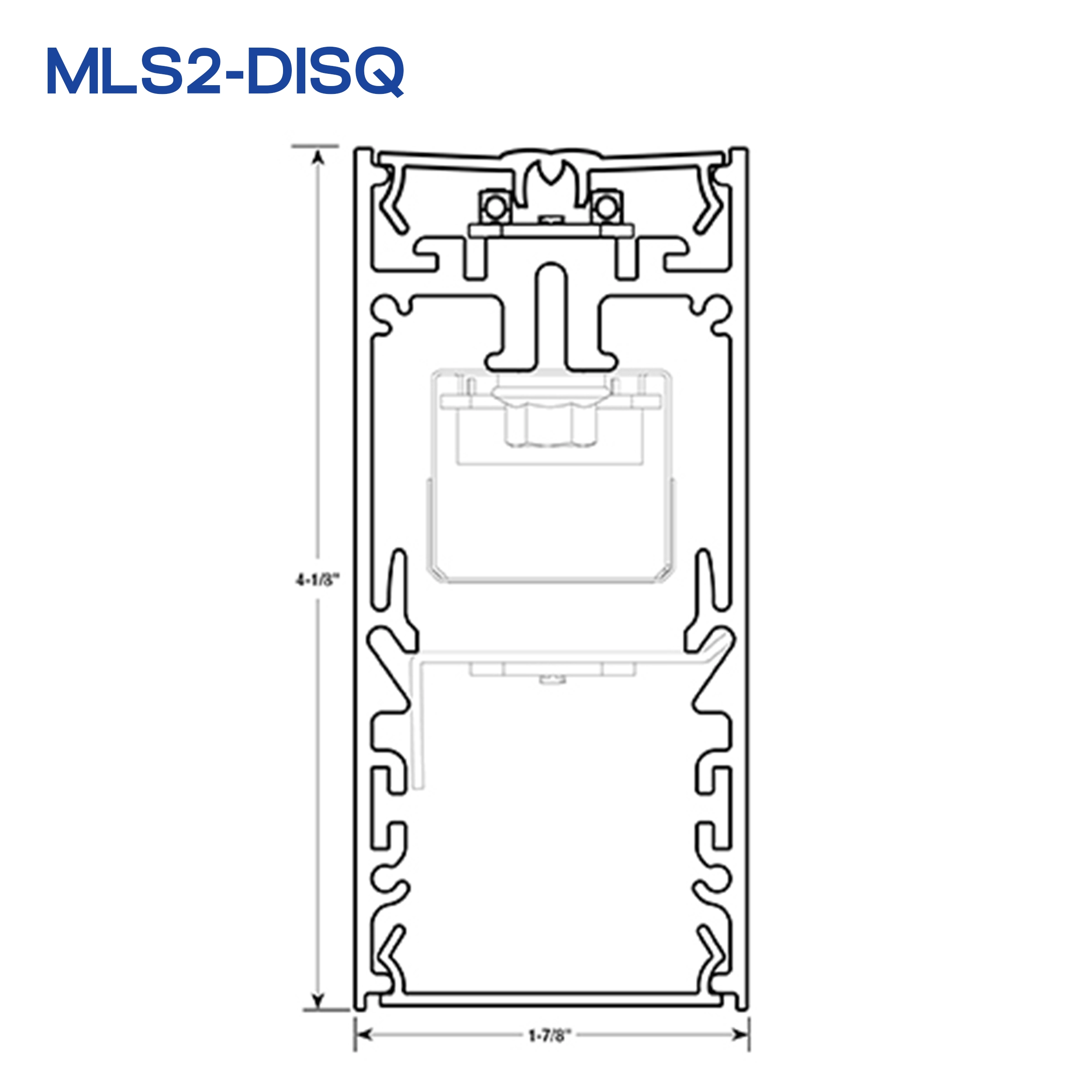

- A new extrusion with a shallower overall height of just 4-1/8”.
- A new custom designed batwing-type indirect diffuser.
- Spreads light from the linear LED boards into two distinct side lobes.
- When projected onto the ceiling the results are a very consistent and wide spread of indirect illumination.
- New additional drop-down or pop-up diffuser options.
- Cataloged standard or custom set lumen packages.
- 80 CRI standard. 90 CRI available.
- Dimming down to 1% on 0-10V controls.
- Fixture lumens per watt ratios up to 91 and 139
- Lighting controls and sensors.
- Custom sizes and other shapes available.
- American Made.
IES & Photometrics
| CATALOG NUMBER | PHOTOMETRICS | IES |
|---|---|---|
| #11800009.02 MLS2-MSQ-24-3000-35K-HTA-A401-U |
Spec Sheets
| MLS2-MSQ | |
| MLS2-DISQ |
