MLS3 RECESSED SQUARE

Direct
Recessed
25X25” / 31”X31 / 36”X36” / 47”X47”– Up to 7200 lm

  • Extruded aluminum housings and mitered corners for perfectly constructed squares of light.

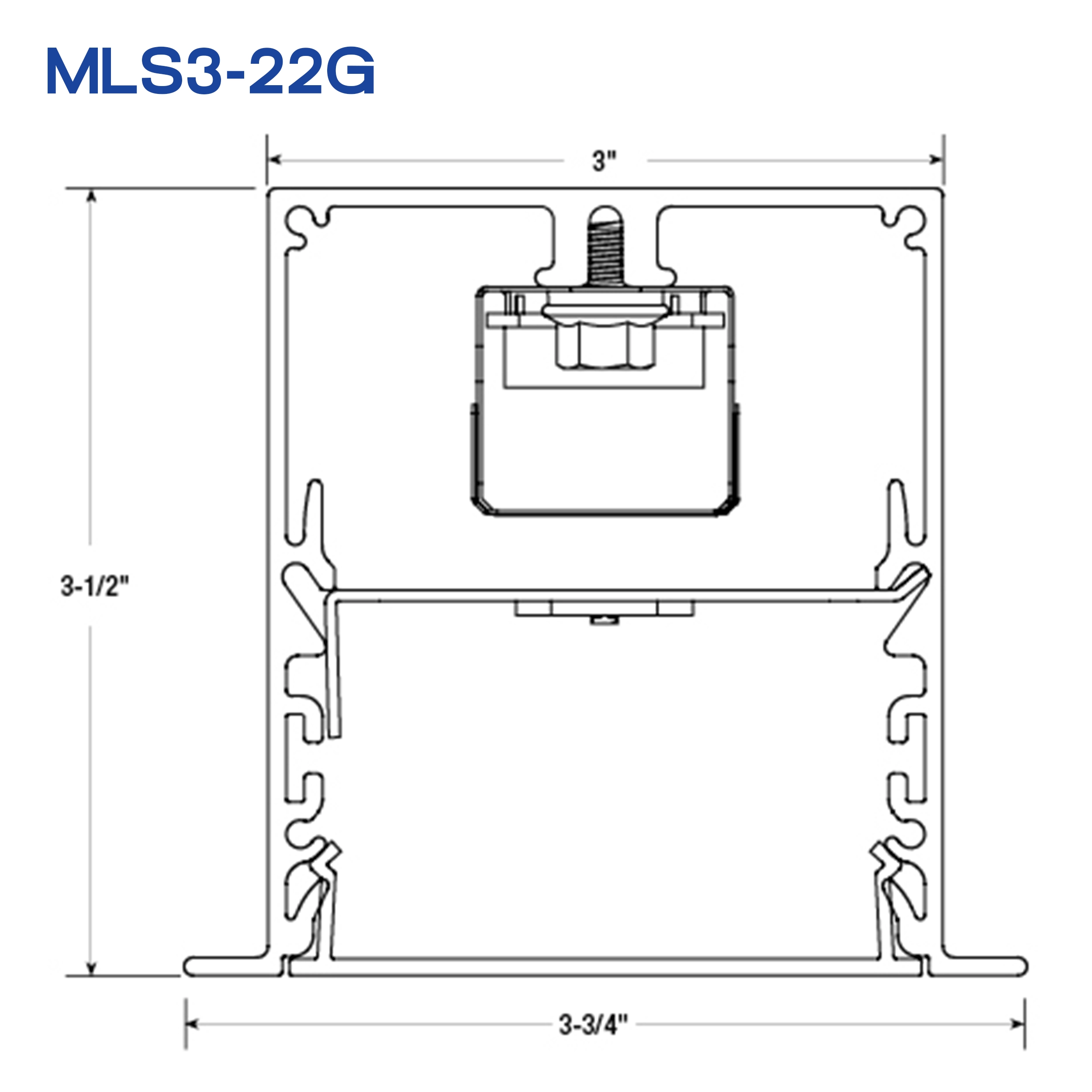

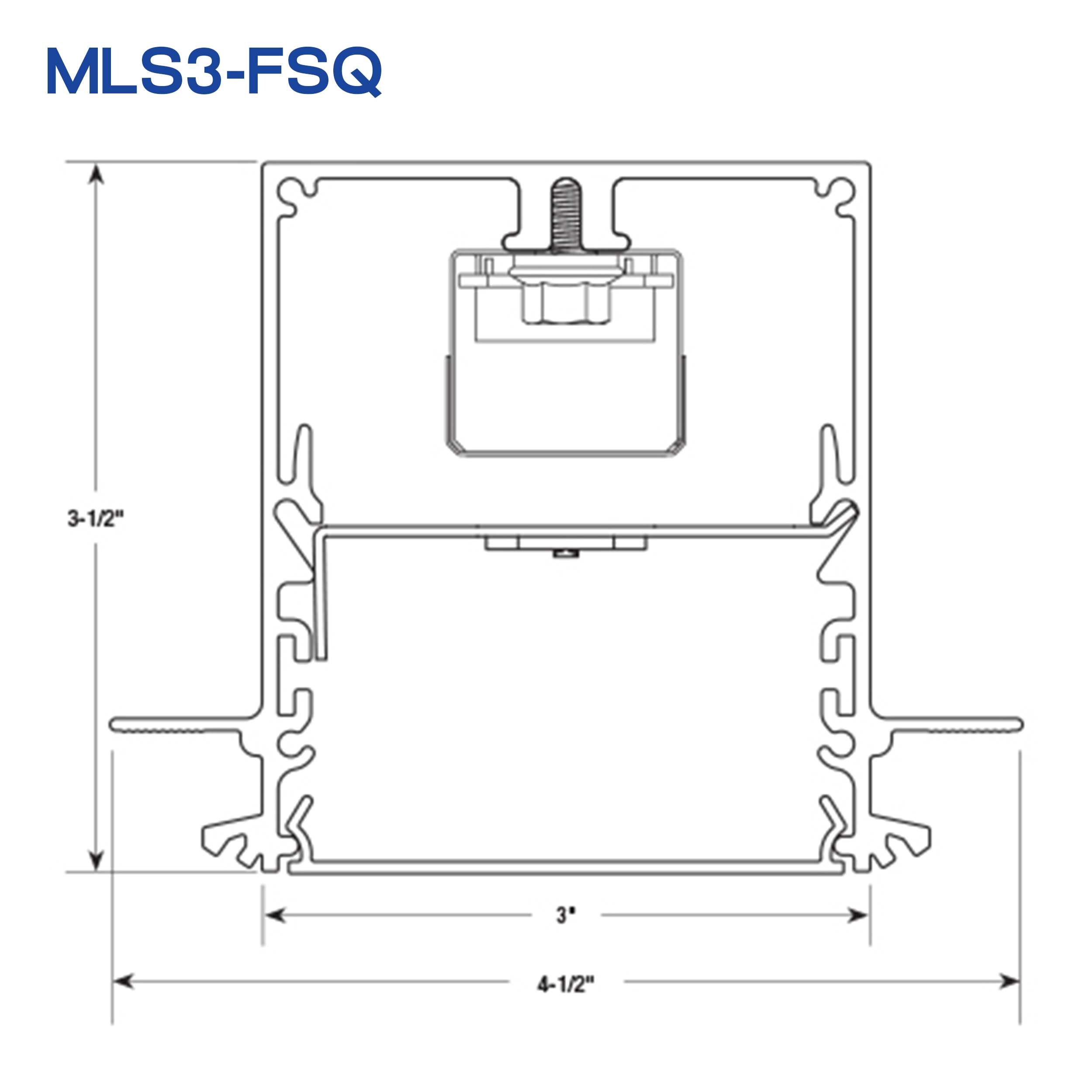

  • Narrow 3” wide profile.
  • Fully illuminated square recessed modules.

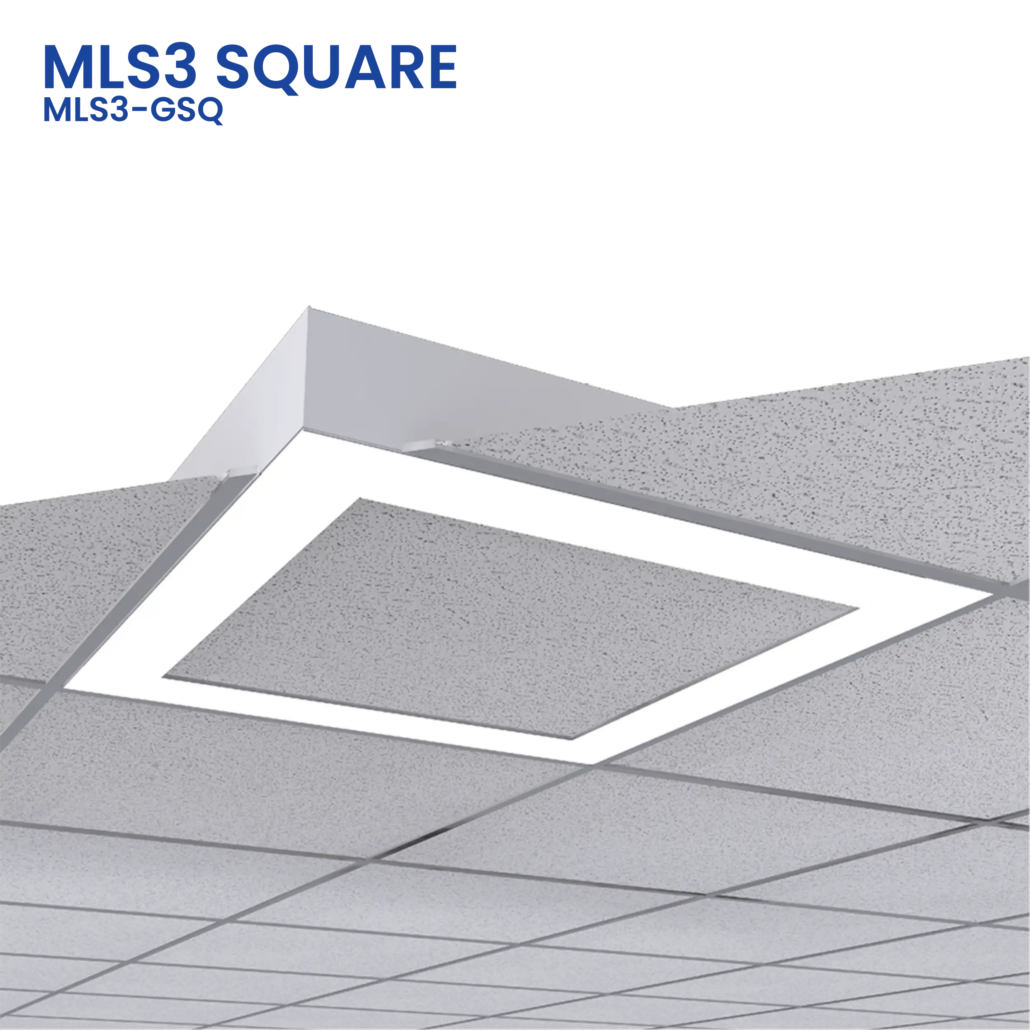

  • Cleanly integrates into a 2X2 grid ceiling, supporting ceiling tile on the luminaire’s inside perimeter.
  • Standard squares of 25″, 31″, 36″, and 47″.
  • Custom formulated high diffusion extruded acrylic lenses, mitered at the corners.
  • Non-glare matte-white polyester powder coating finish.
  • Recessed for various grid and drywall ceiling types.
  • Cataloged standard or custom set lumen packages.
  • 80 CRI standard. 90 CRI available.
  • Dimming down to 1% on 0-10V controls.
  • IC rated.
  • Fixture lumens per watt ratios up to 104 and 110.
  • Meets the requirements for Chicago Plenum use.
  • Lighting controls and sensors.
  • American Made.
SPEC SHEET
