MLS2 RECESSED SQUARE

Direct
Recessed
24X24” / 30”X30” / 35”X35” / 24X48” / 24”X48”– Up to 7200 lm

  • Extruded aluminum housings and mitered corners for perfectly constructed squares of light.

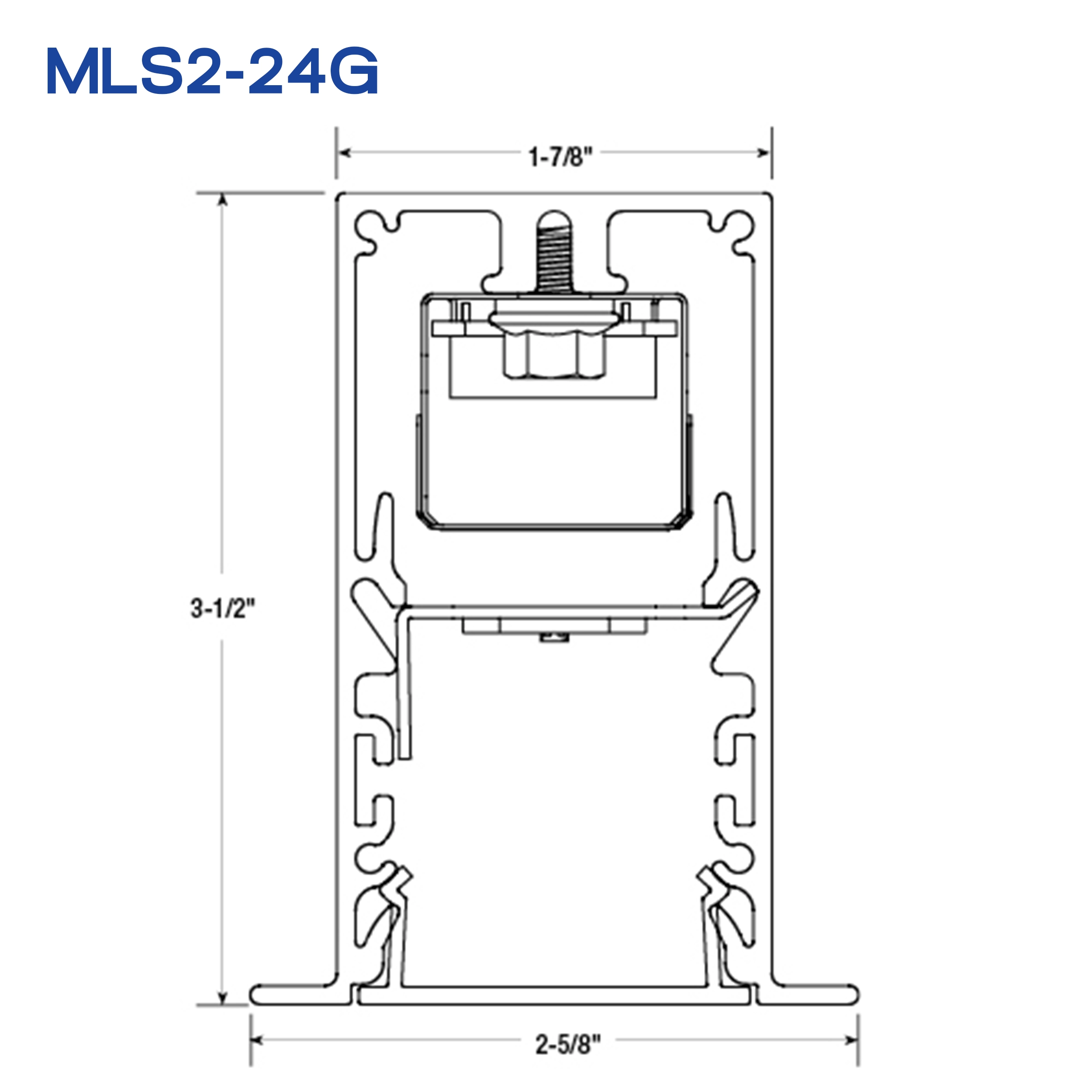

  • Narrow 1 7/8” wide profile.
  • Fully illuminated square recessed modules.

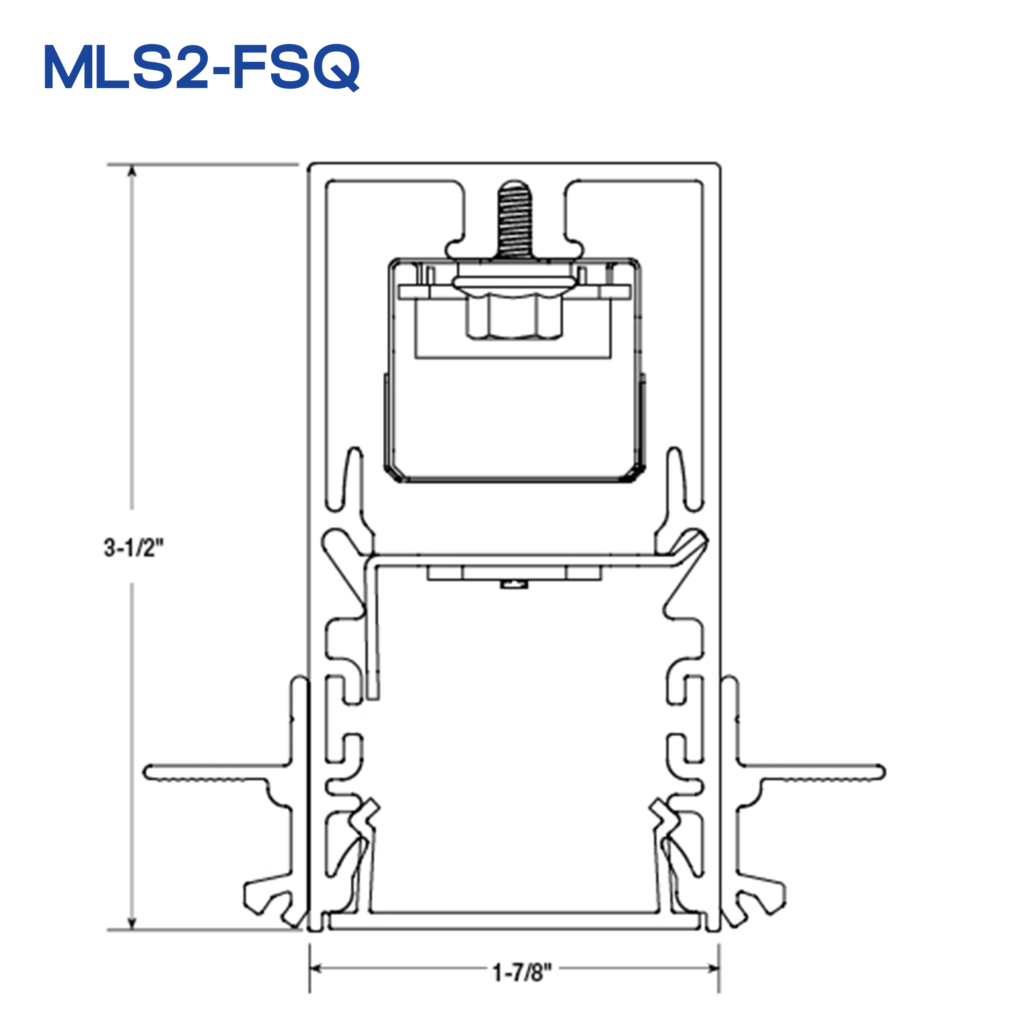

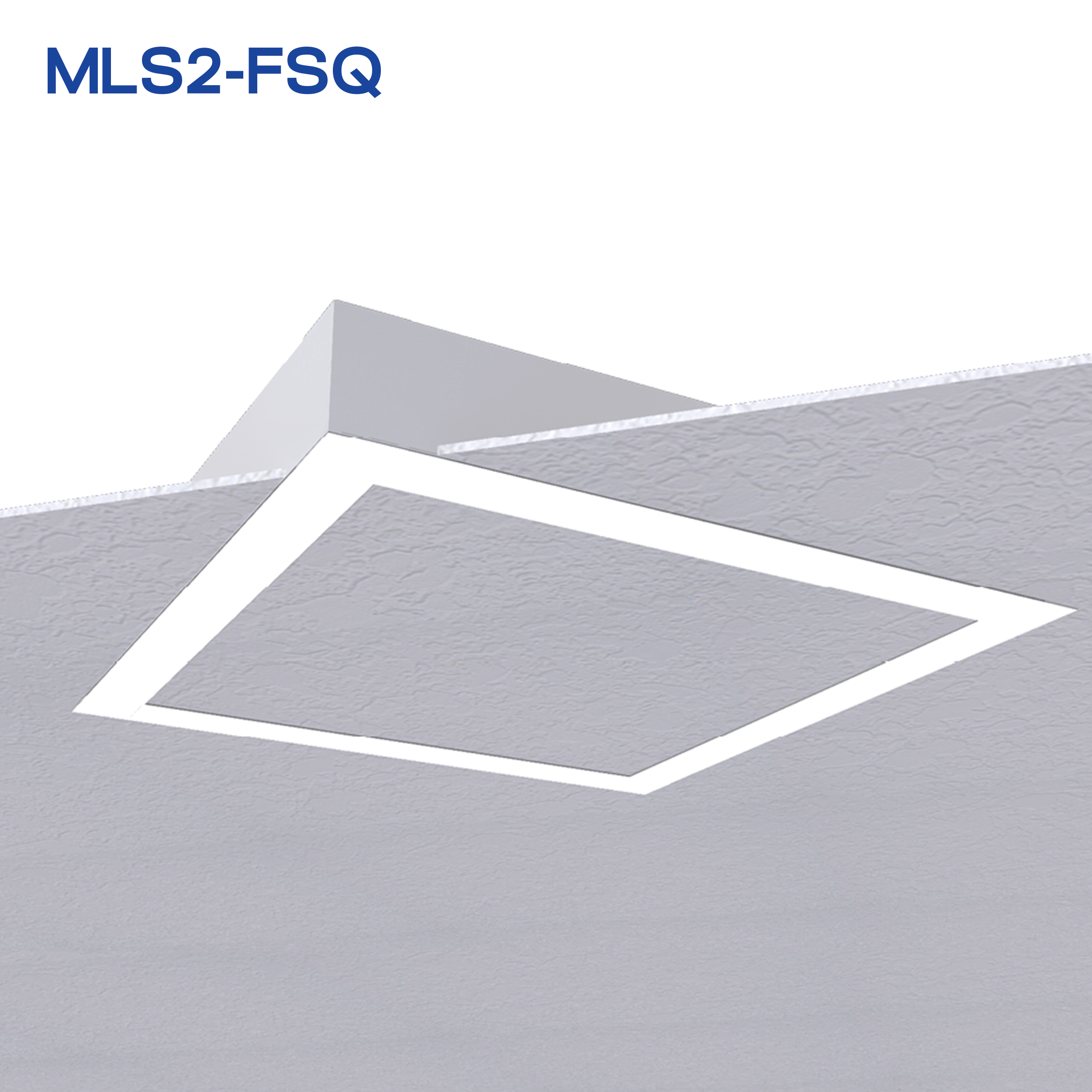

  • Intended for recessing into drywall ceiling types; trimless or overlapping flange trim.

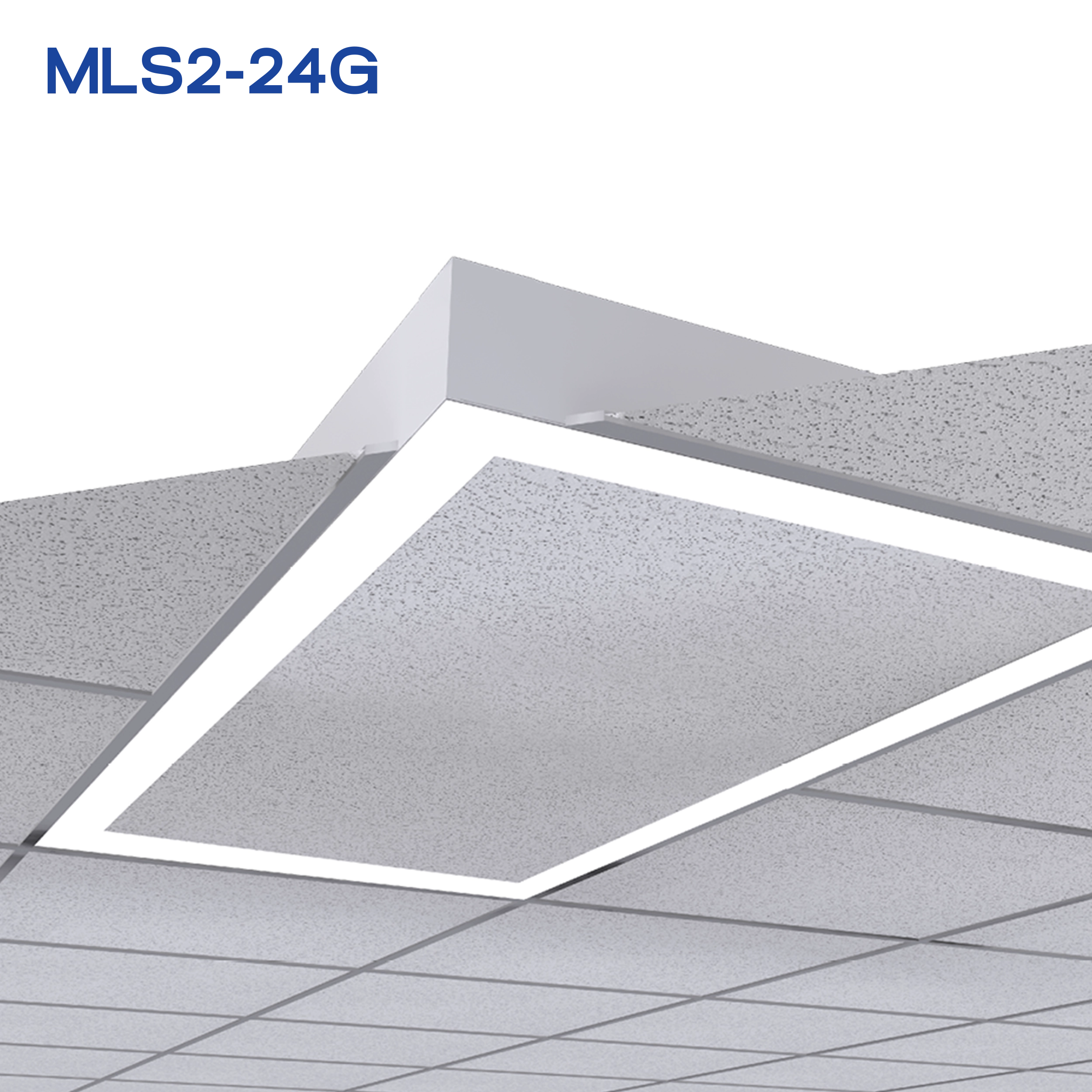

  • Cleanly integrates into a 2X2, 2×4, grid ceiling, supporting ceiling tile on the luminaire’s inside perimeter.
  • Standard squares of 24″, 30″, 35″, and 46″.
  • Custom formulated high diffusion extruded acrylic lenses, mitered at the corners.
  • Non-glare matte-white polyester powder coating finish.
  • Recessed for various grid ceiling types.
  • Cataloged standard or custom set lumen packages
  • 80 CRI standard. 90 CRI available.
  • Dimming down to 1% on 0-10V controls.
  • IC rated.
  • Fixture lumens per watt ratios up to 90.
  • Meets the requirements for Chicago Plenum use.
  • Lighting controls and sensors.
  • American Made.
