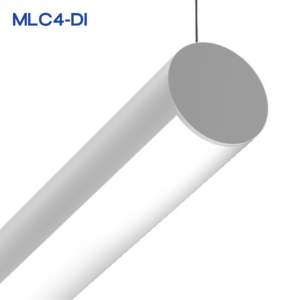

SUSPENDED HEXAGONAL & ROUND PROFILE

Direct-Indirect
Suspended / Surface Mount
4” – Up to 1270 lm

  • Extruded aluminum housing.
  • Linear lengths of 2-ft and above in increments of one-inch.
  • Dual directional illumination. Direct downlighting and indirect uplighting.

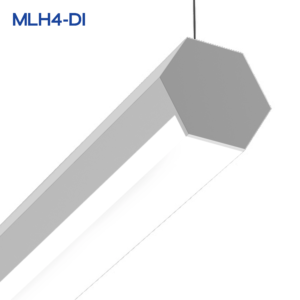

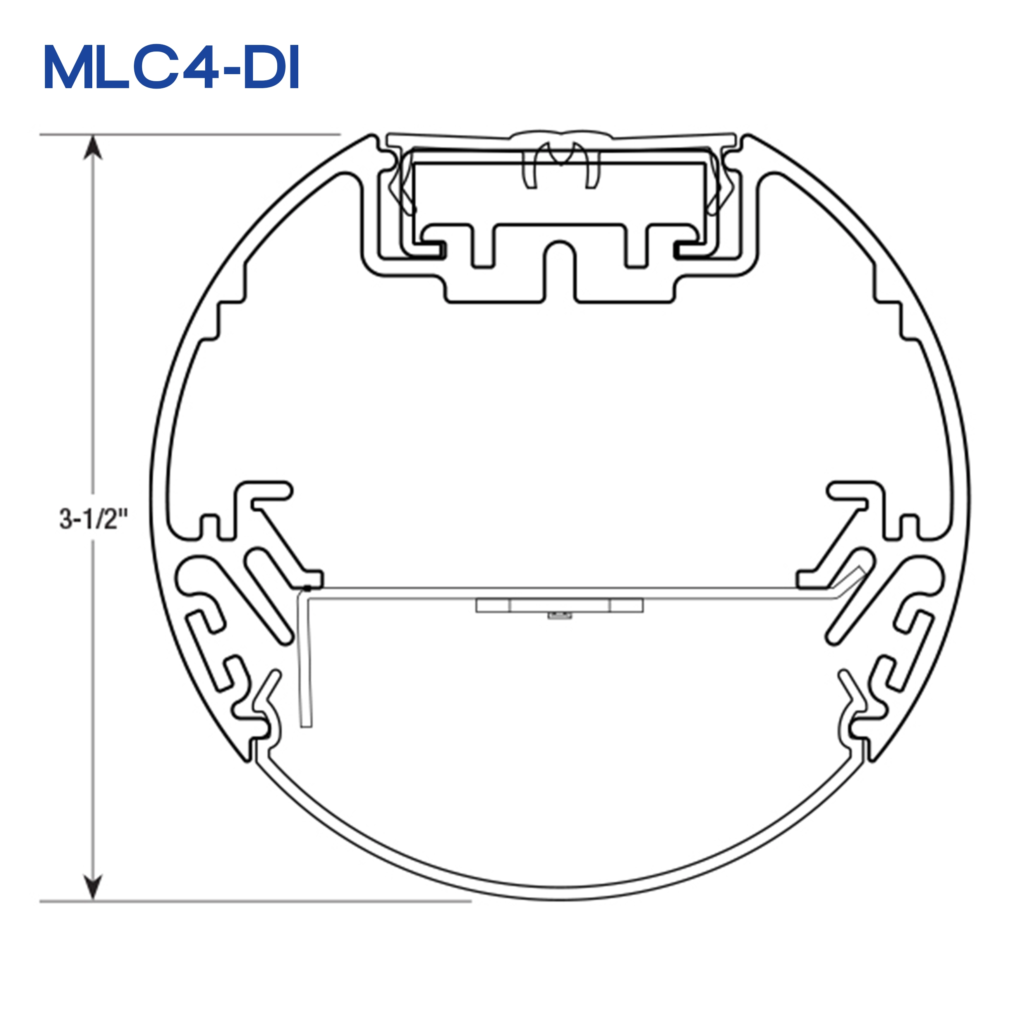

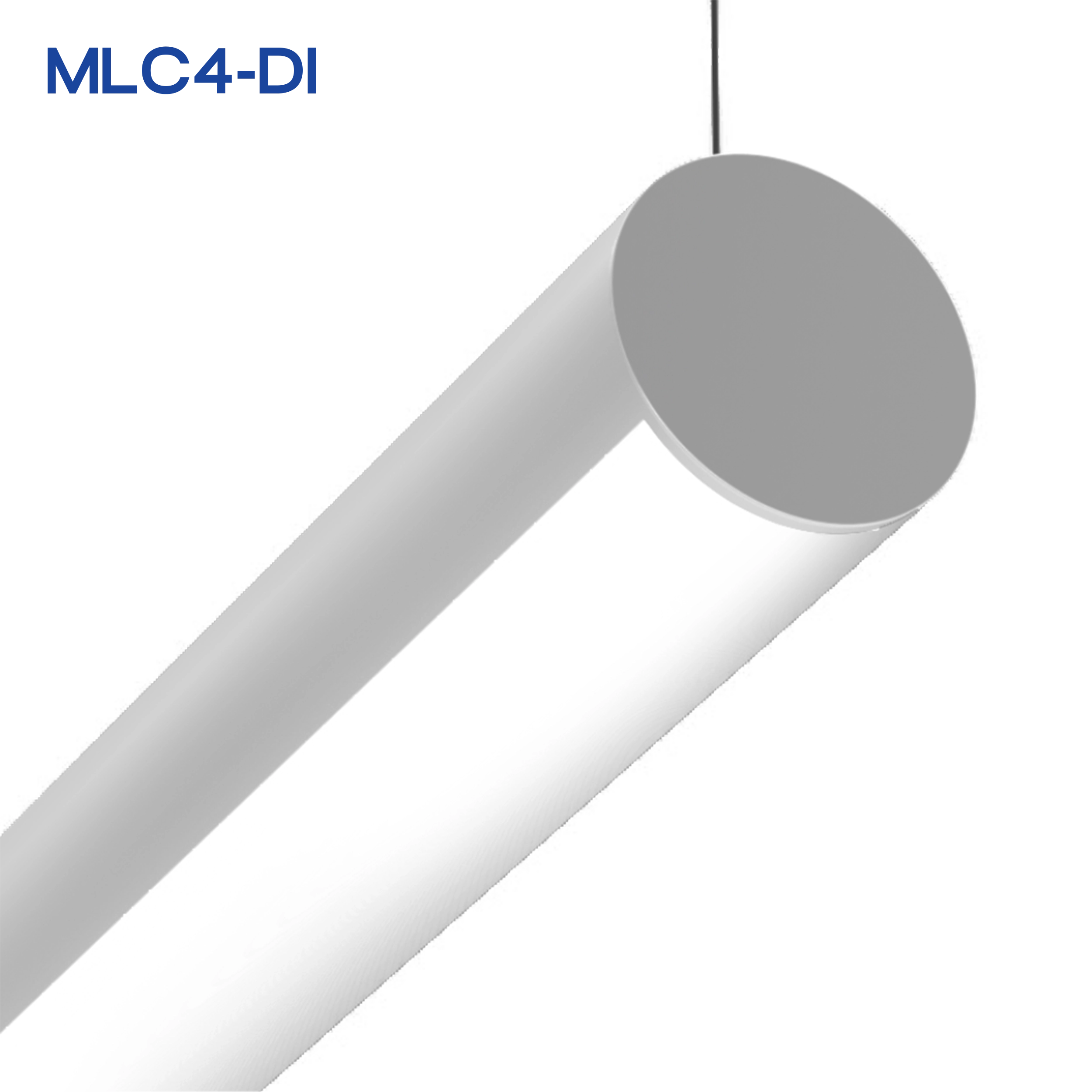

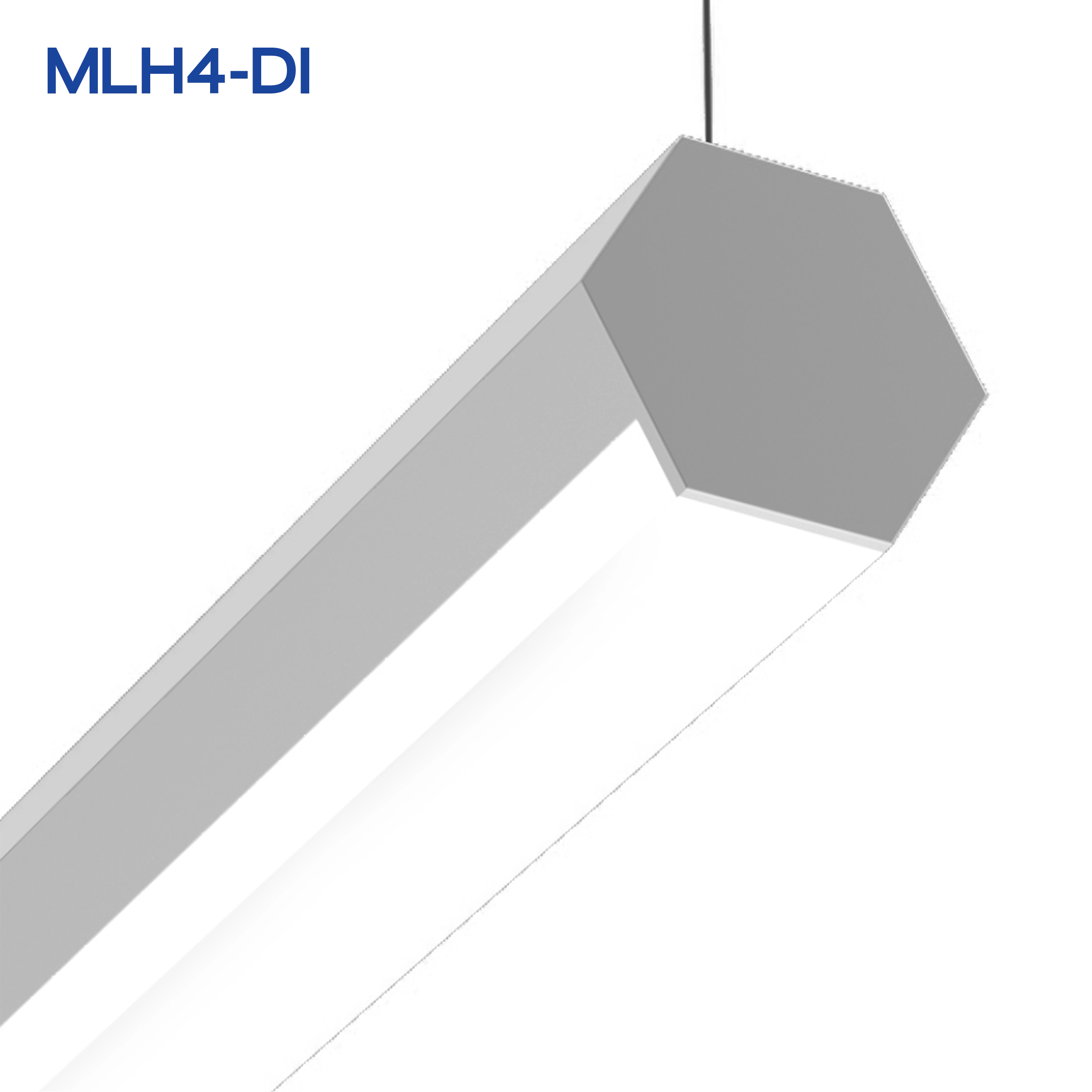

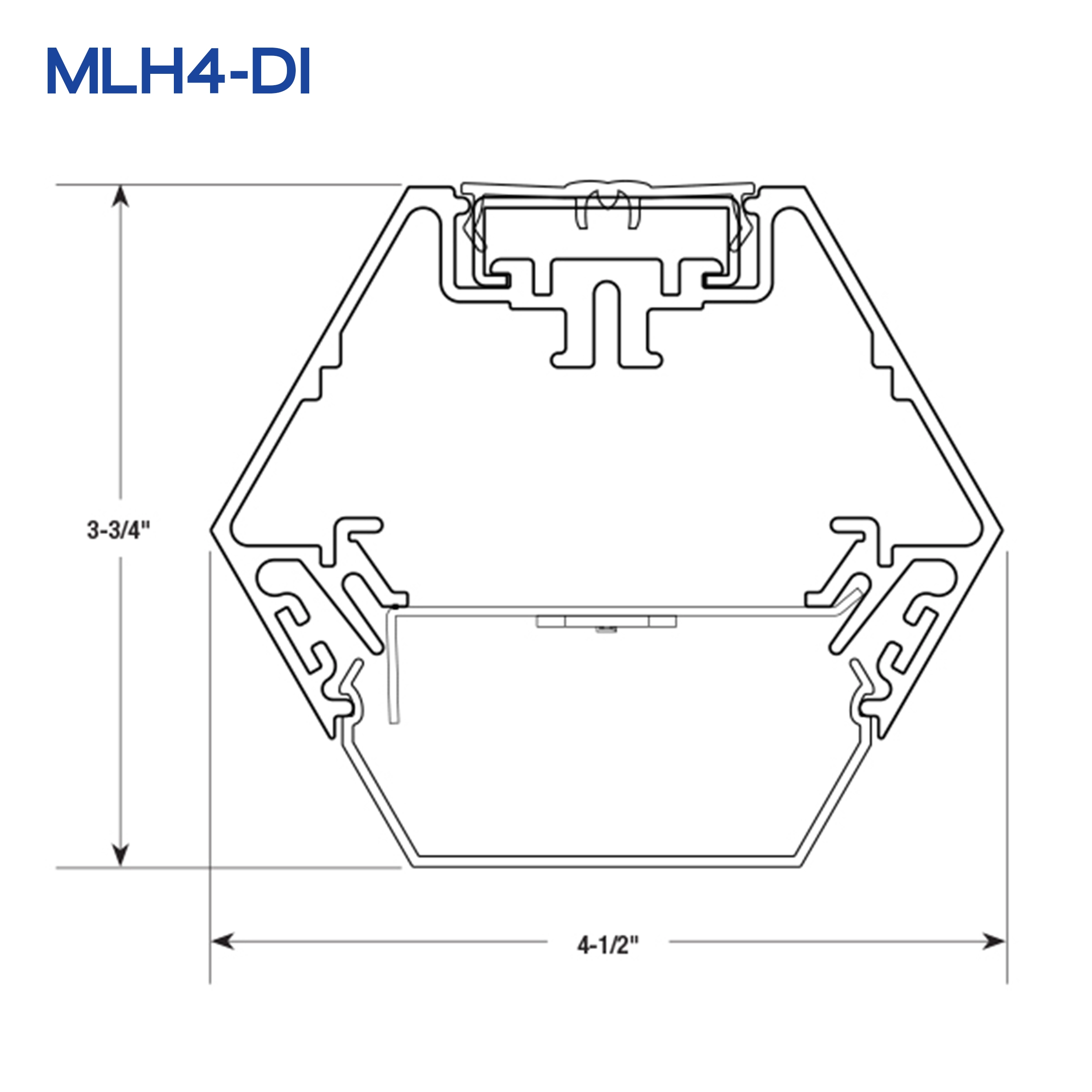

  • Nominal 4-inch hexagonal and round profile for architectural appeal.
  • Custom formulated high diffusion extruded acrylic direct lens completes the bottom and matches the profile’s shape.
  • Custom designed batwing-type indirect diffuser optimizes the spread of the indirect illumination.
  • Non-glare matte-white polyester powder coating finish.
  • Custom colors available.

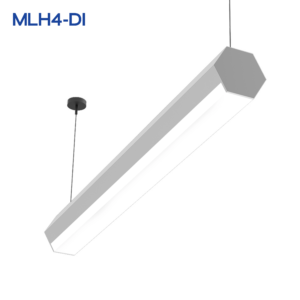

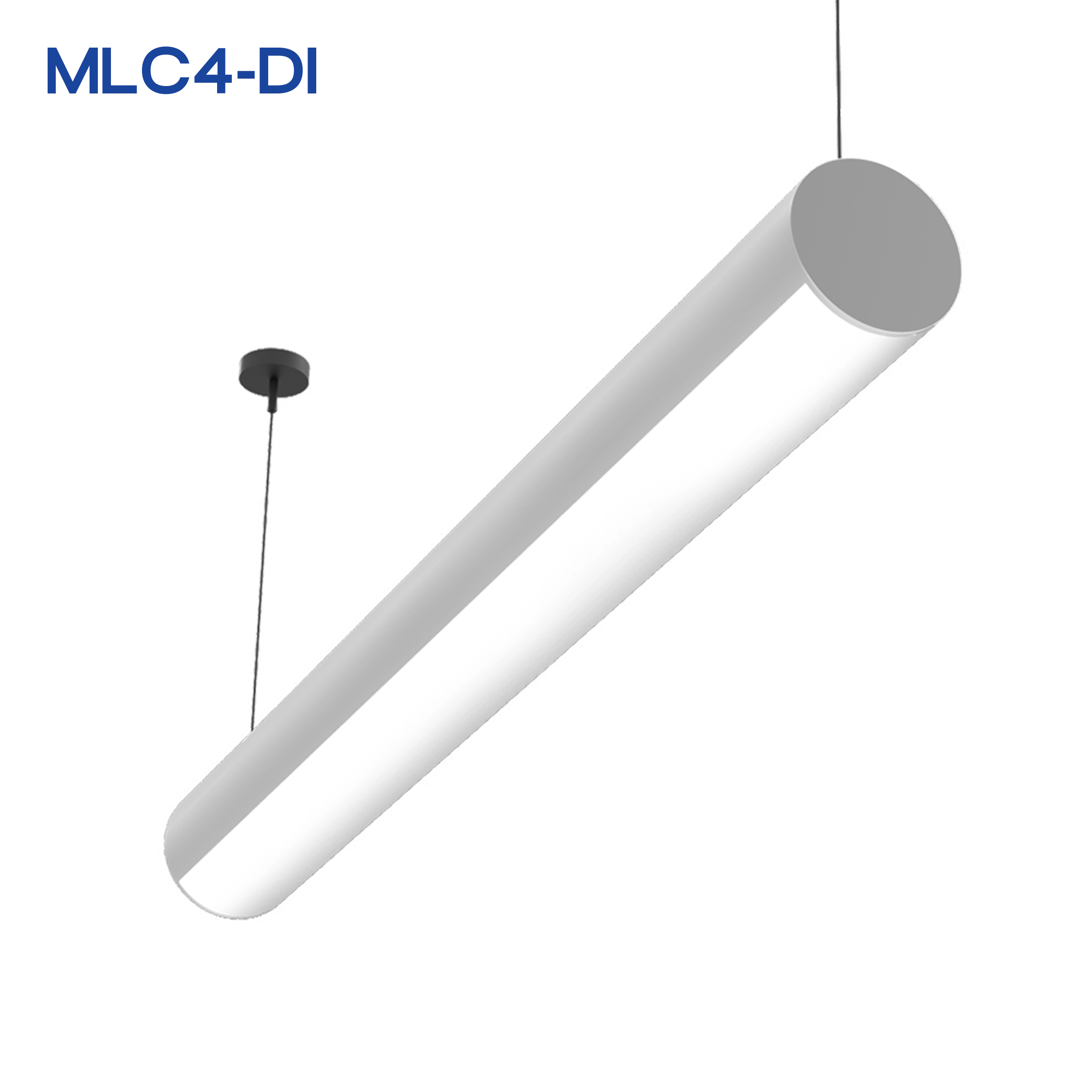

  • Cable mount from ceiling.
  • Cataloged standard or custom set lumens-per-foot performances.
  • 80 CRI standard. 90 CRI available.
  • Tunable white feature.
  • Continuous dimming capability down to 1% on 0-10V controls.
  • Standard and custom corners.
  • Power over Ethernet (PoE) enabled as an Igor Ecosystem
  • Partner, wtec smartengine or Molex CoreSync.
  • Fixture lumens per watt ratios up to 129 and 129.3.
  • Tunable white feature for standard system or PoE system.
  • Lighting controls and sensors.
  • American Made.
