MLS3 SUSPENDED/SURFACE
Direct / Indirect / Direct-Indirect
Suspended / Surface / Wall mount
3” – Up to 1200 lm
- Extruded aluminum housing.

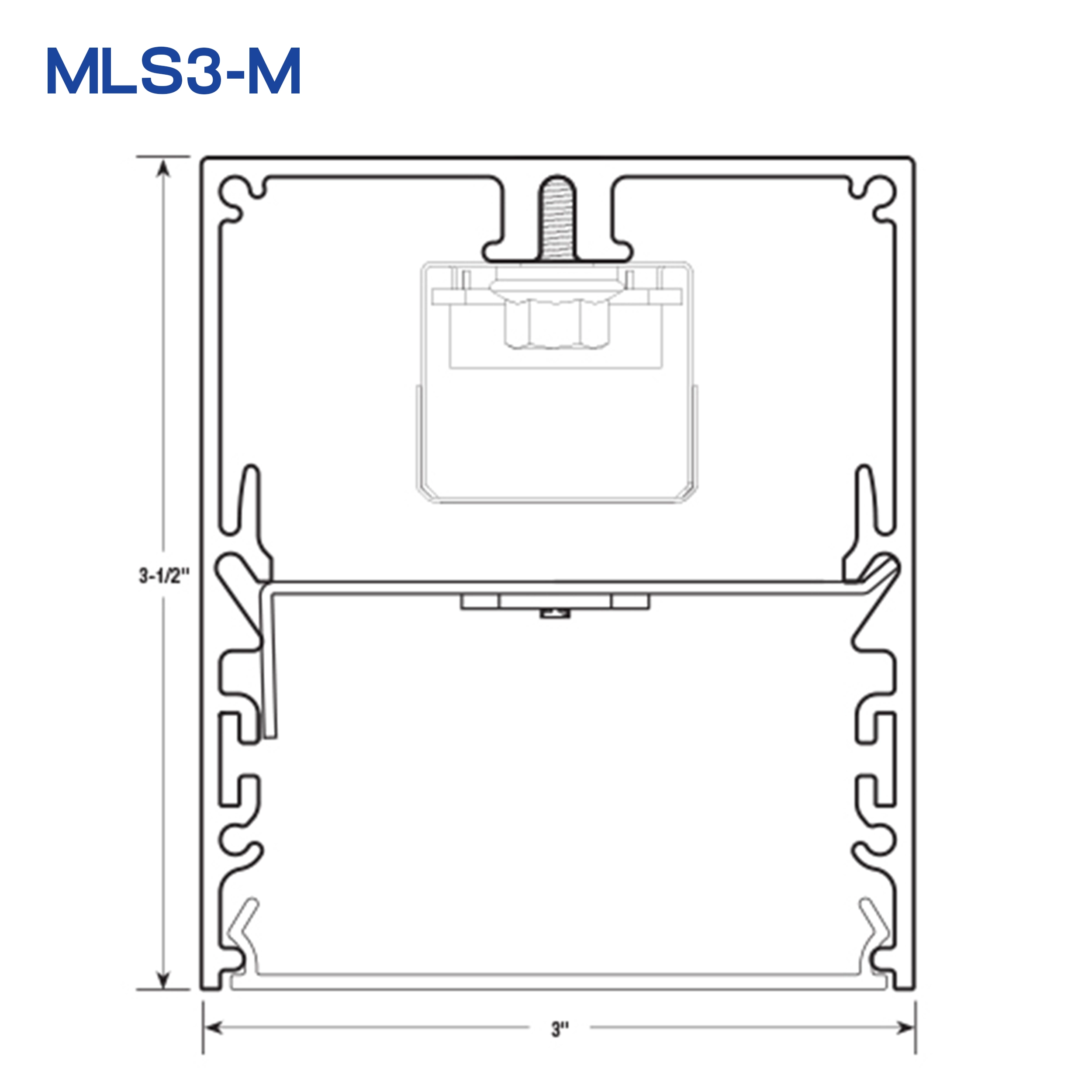

- Narrow 3” wide profile.
- Linear lengths; 2-ft. and above in increments of one-inch.
- Custom formulated high diffusion extruded acrylic lens.
- Non-glare matte-white polyester powder coating finish.
- Dual directional illumination. Direct downlighting and indirect uplighting.
- Indirect uplighting while being suspended from a ceiling.

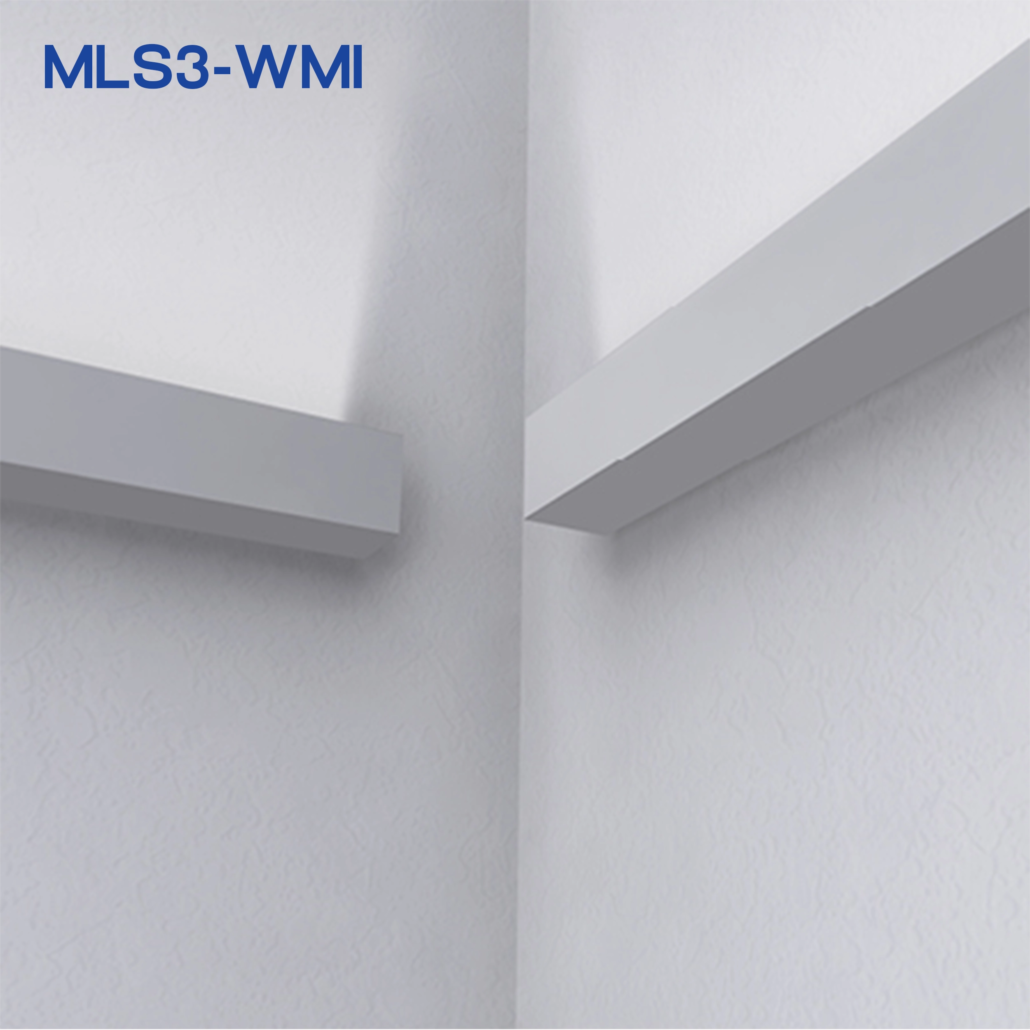

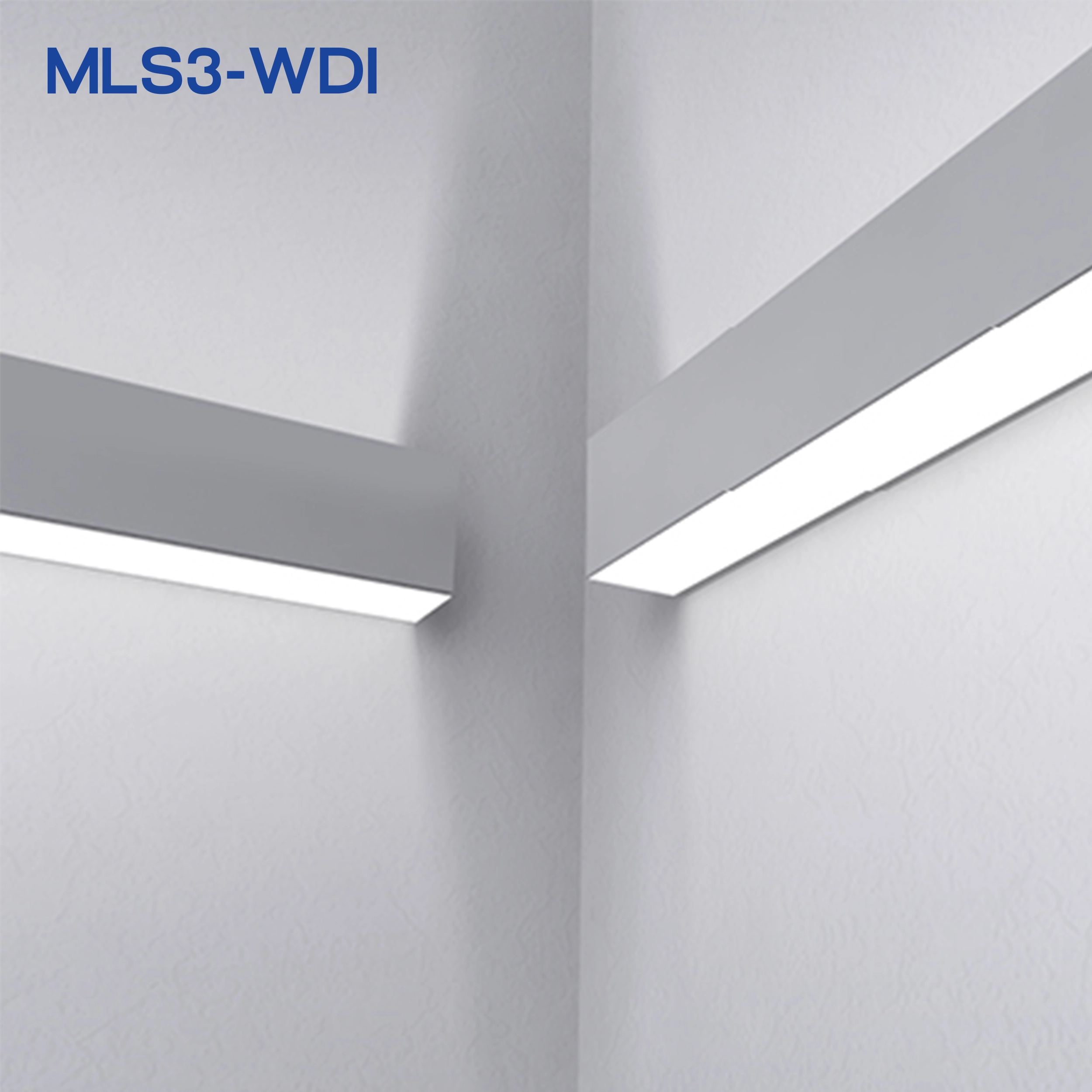

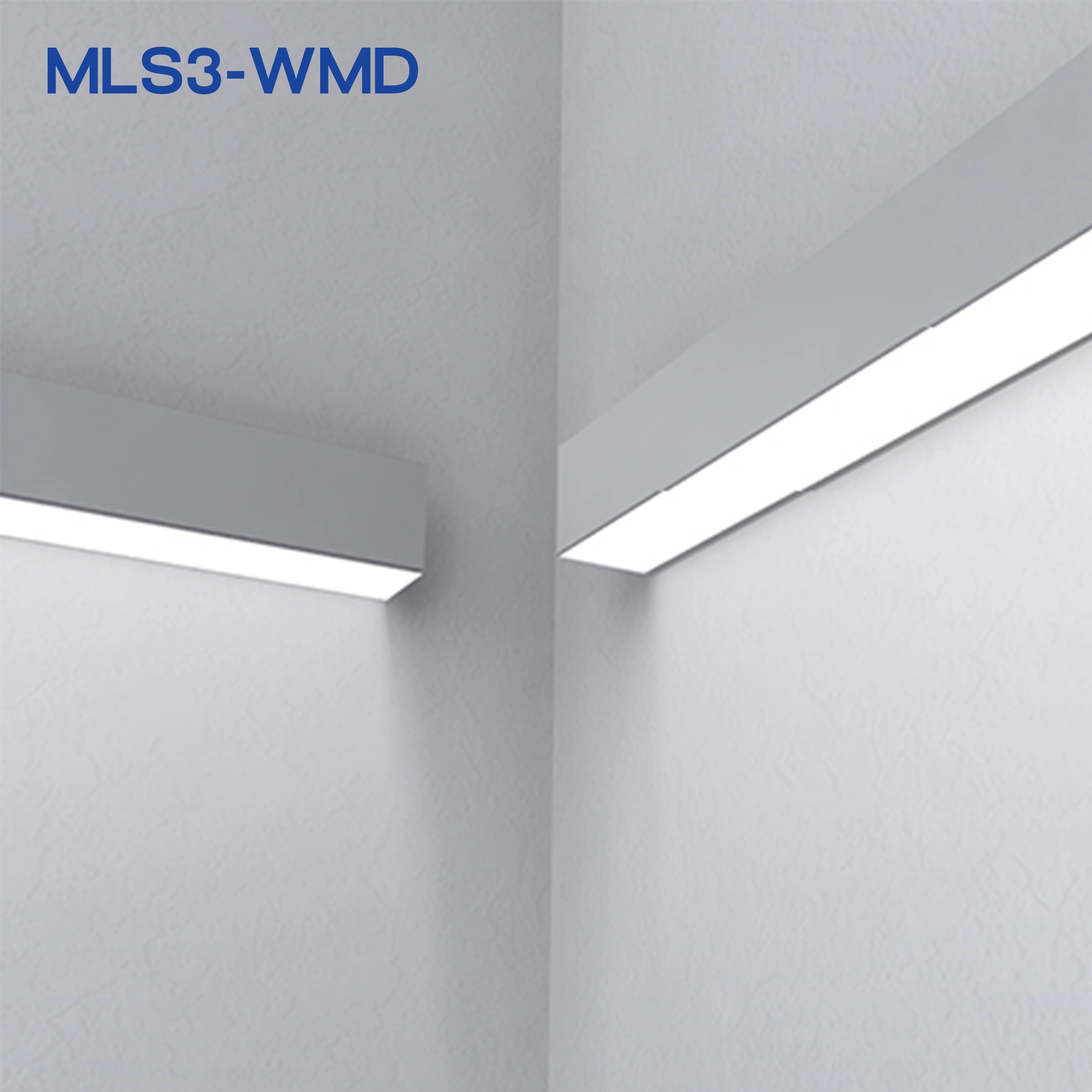

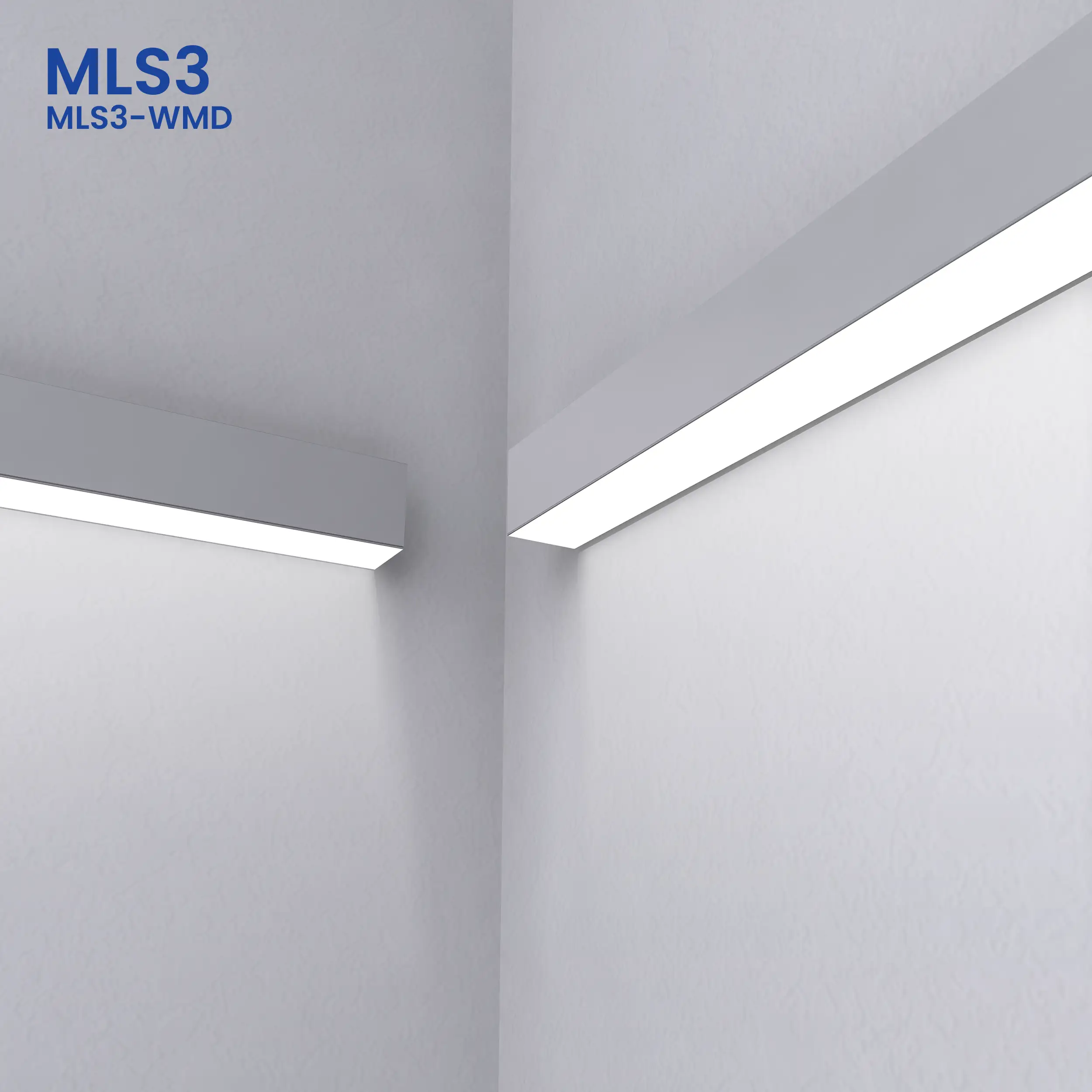

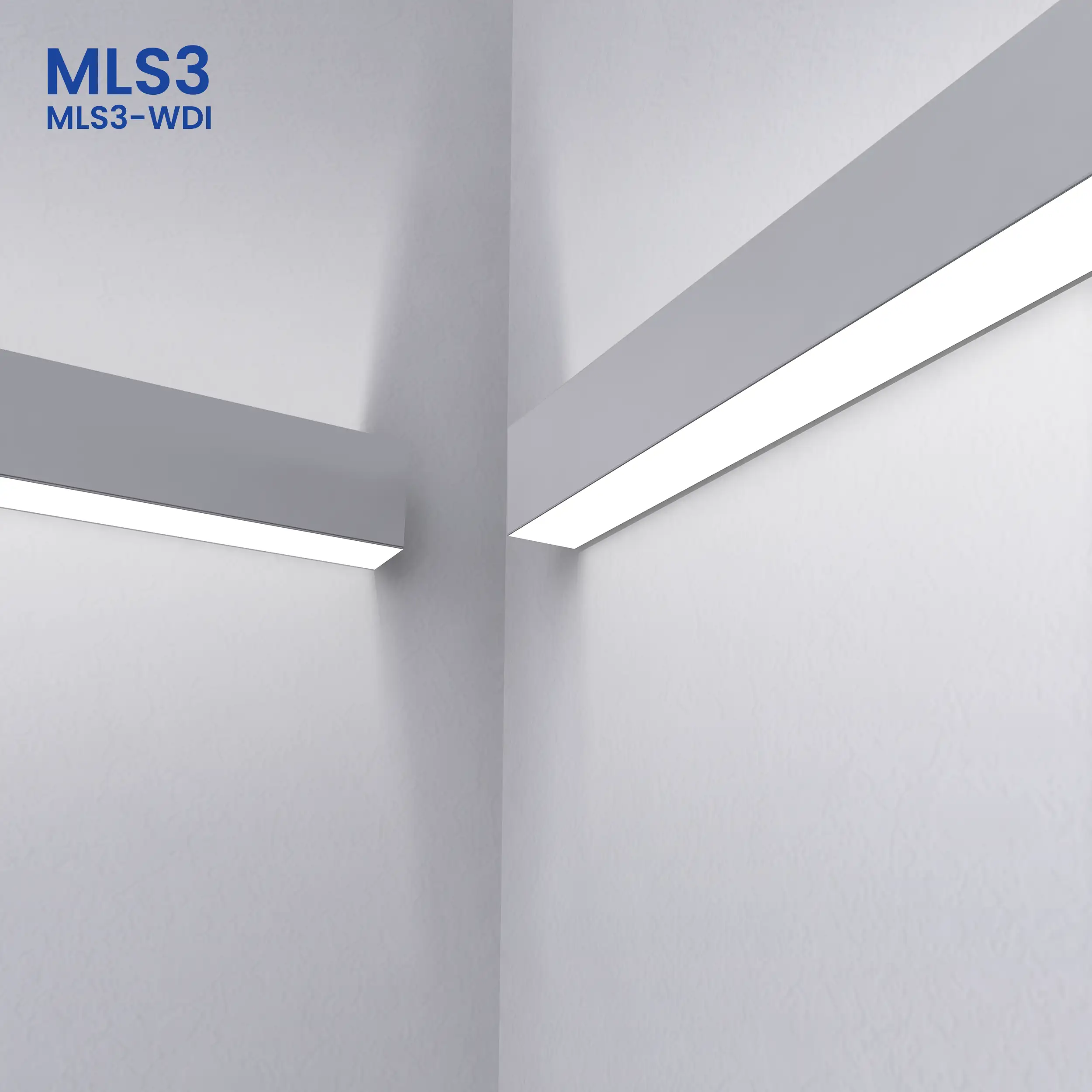

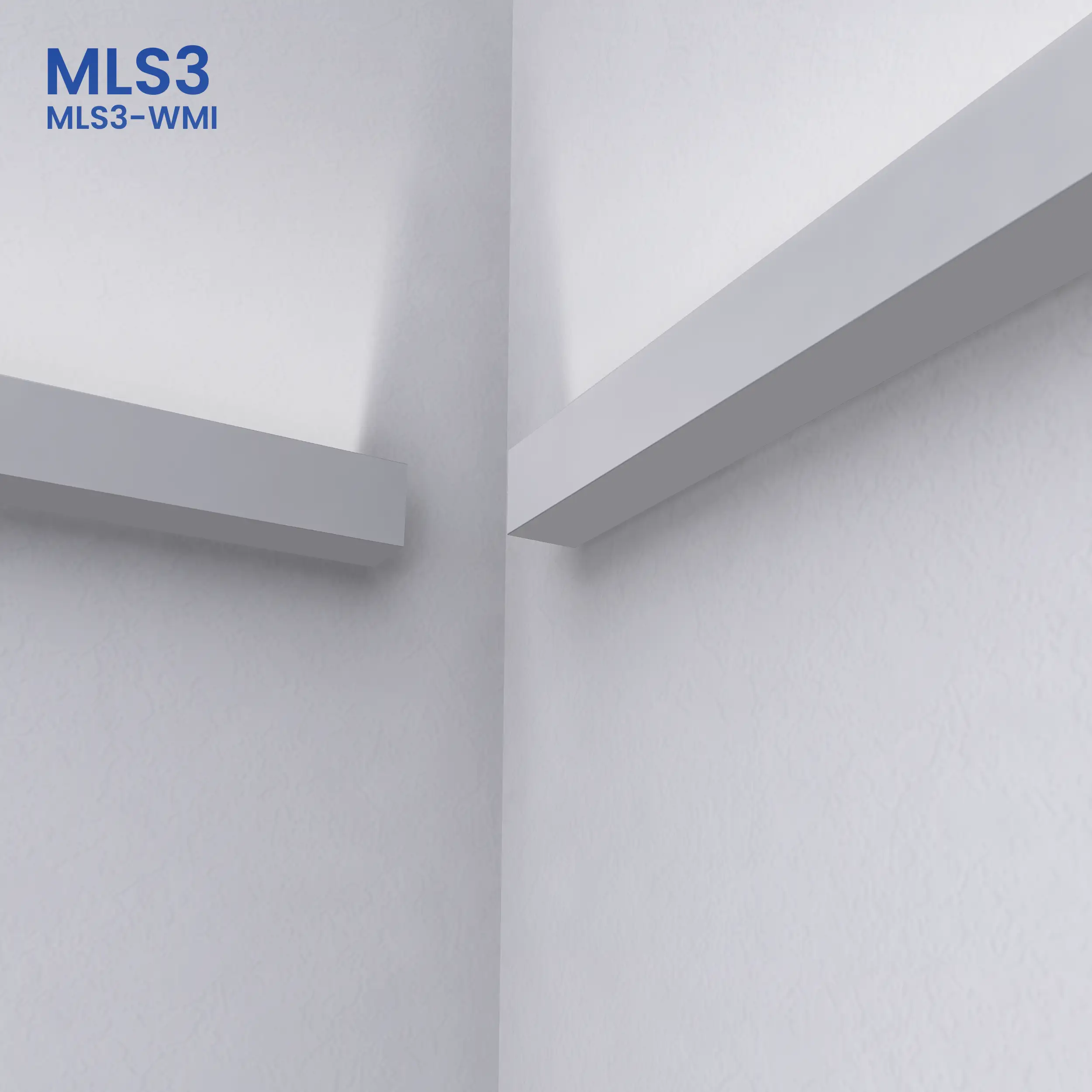

- Wall mounted dual, direct and indirect illumination.
- Direct downlighting and indirect uplighting for wall grazing and general illumination.
- Standard and custom corners, crosses and T-sections offer the U E ability to design unlimited patterns, shapes and runs.
- Custom colors available.

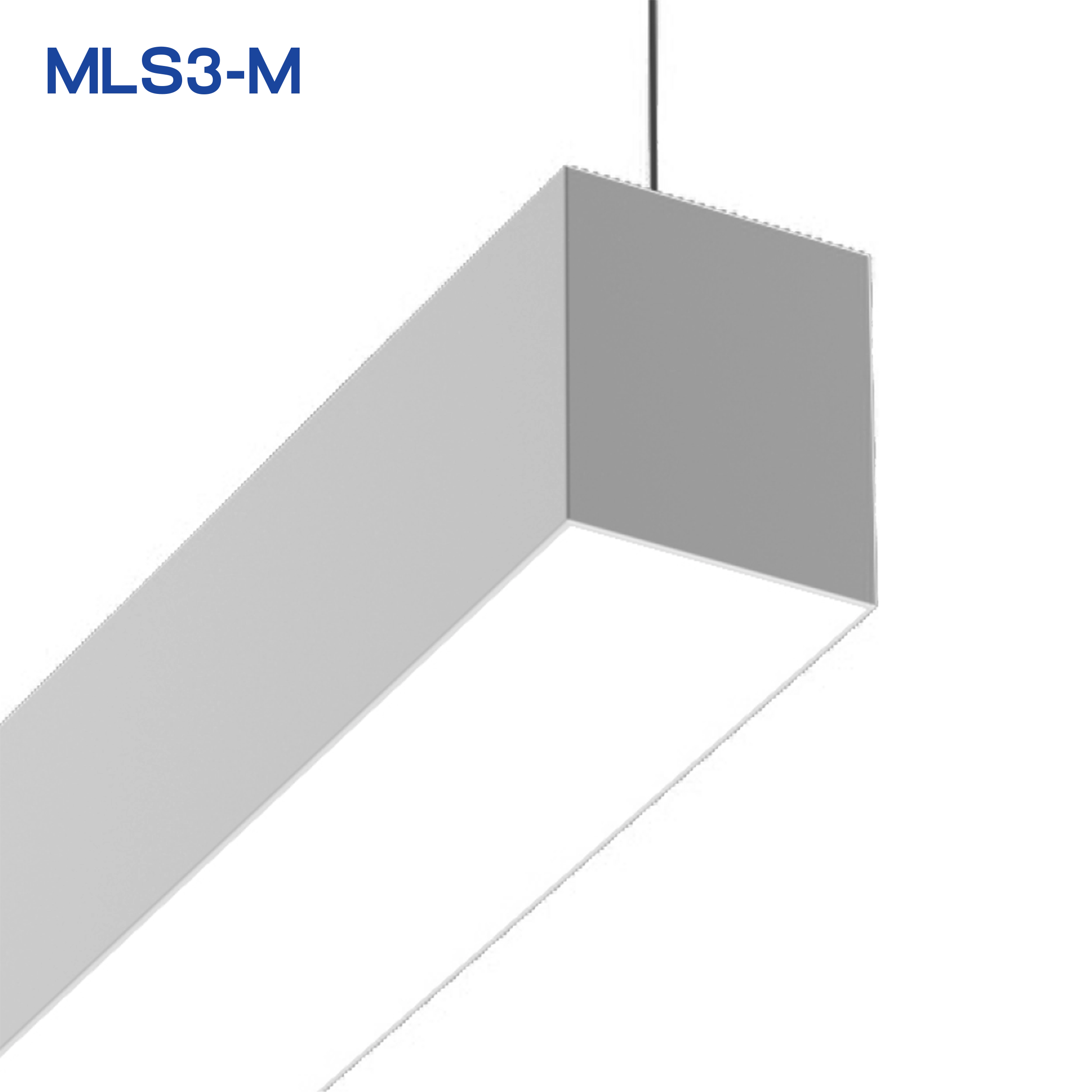

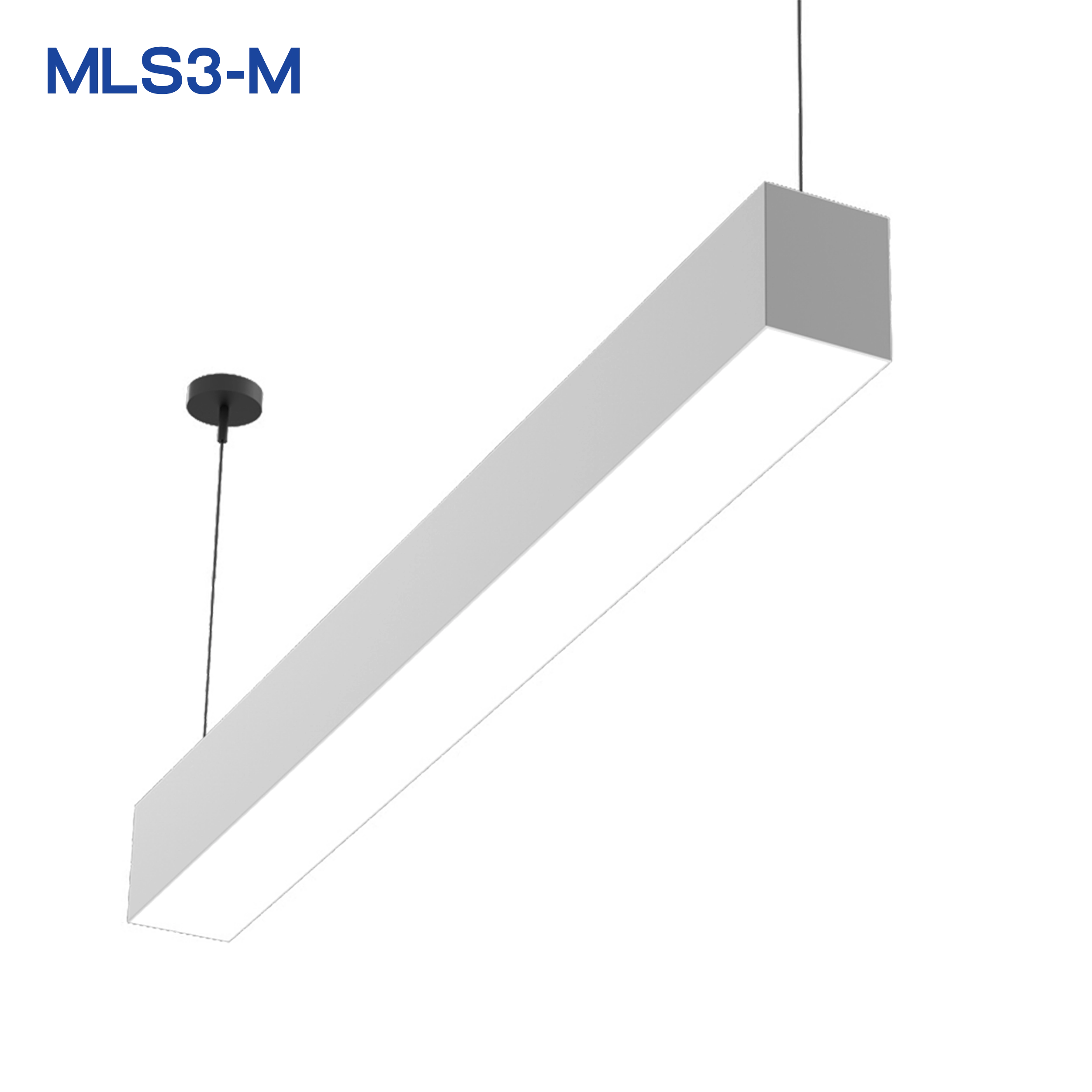

- Cable mount from ceiling.
- Cable or stem mount from ceiling, or direct surface mount.

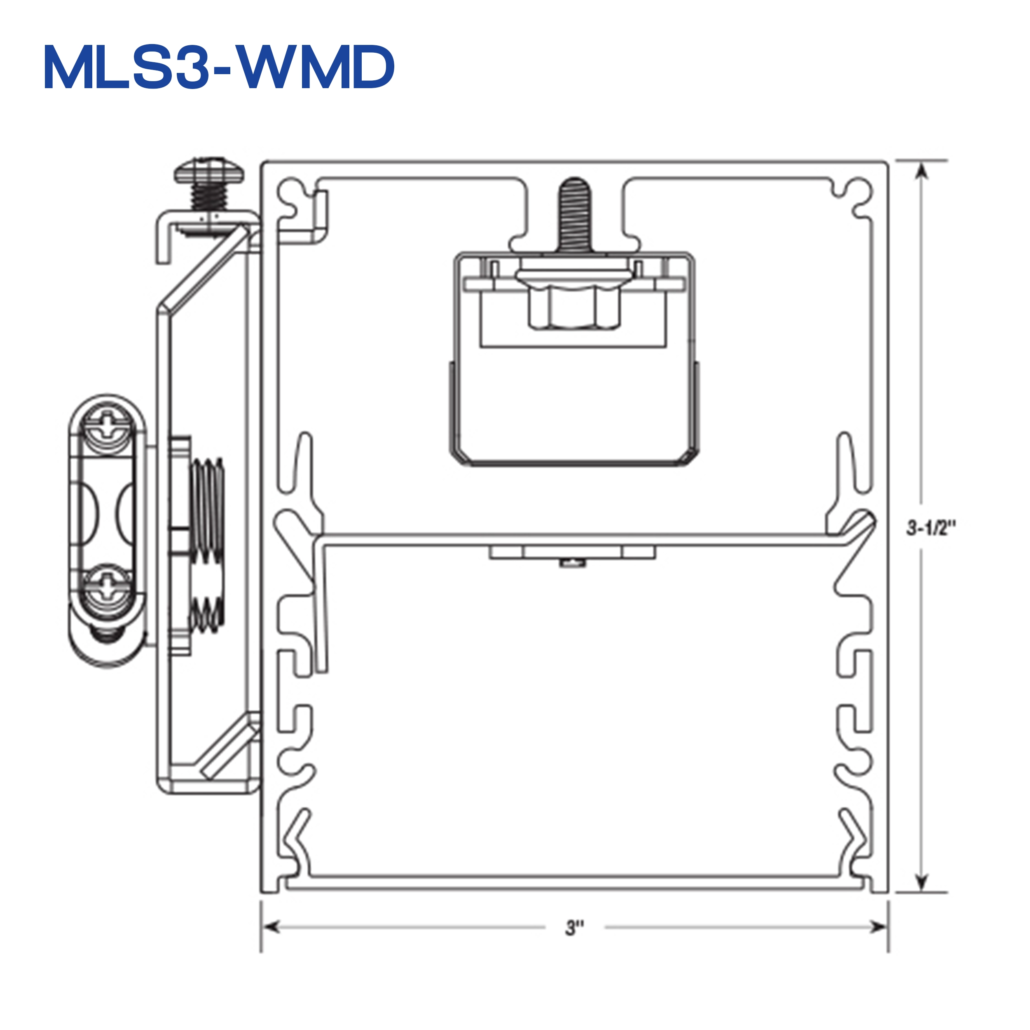

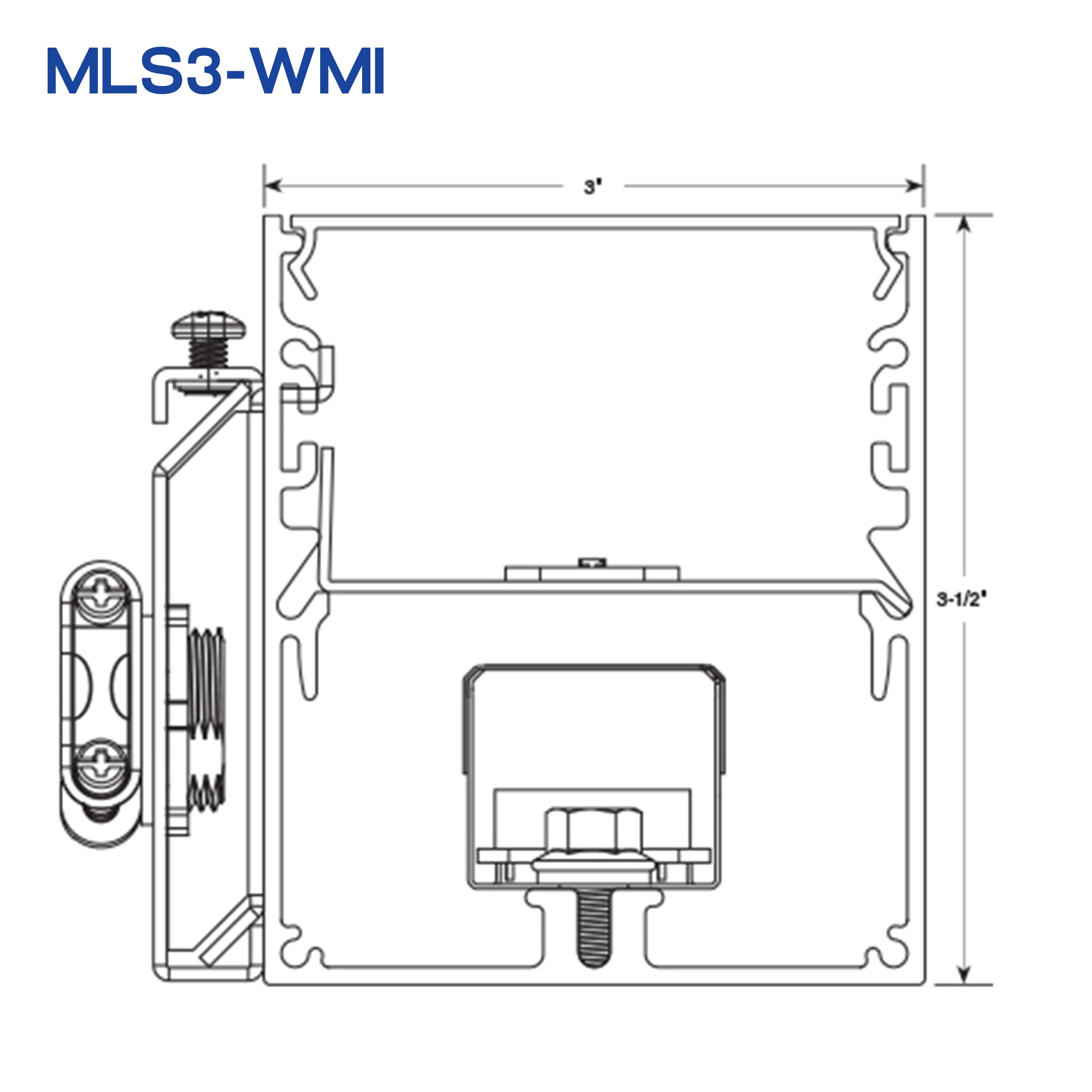

- Wall mounting system provides a half-inch standoff.
- Cataloged standard or custom set lumens-per-foot performances.
- 80 CRI standard. 90 CRI available.
- Continuous dimming capability down to 1% on 0-10V controls.
- Fixture lumens per watt ratios up to 133.
- Tunable white feature optional.
- Lighting controls and sensors.
- Standard and custom corners
- American Made.

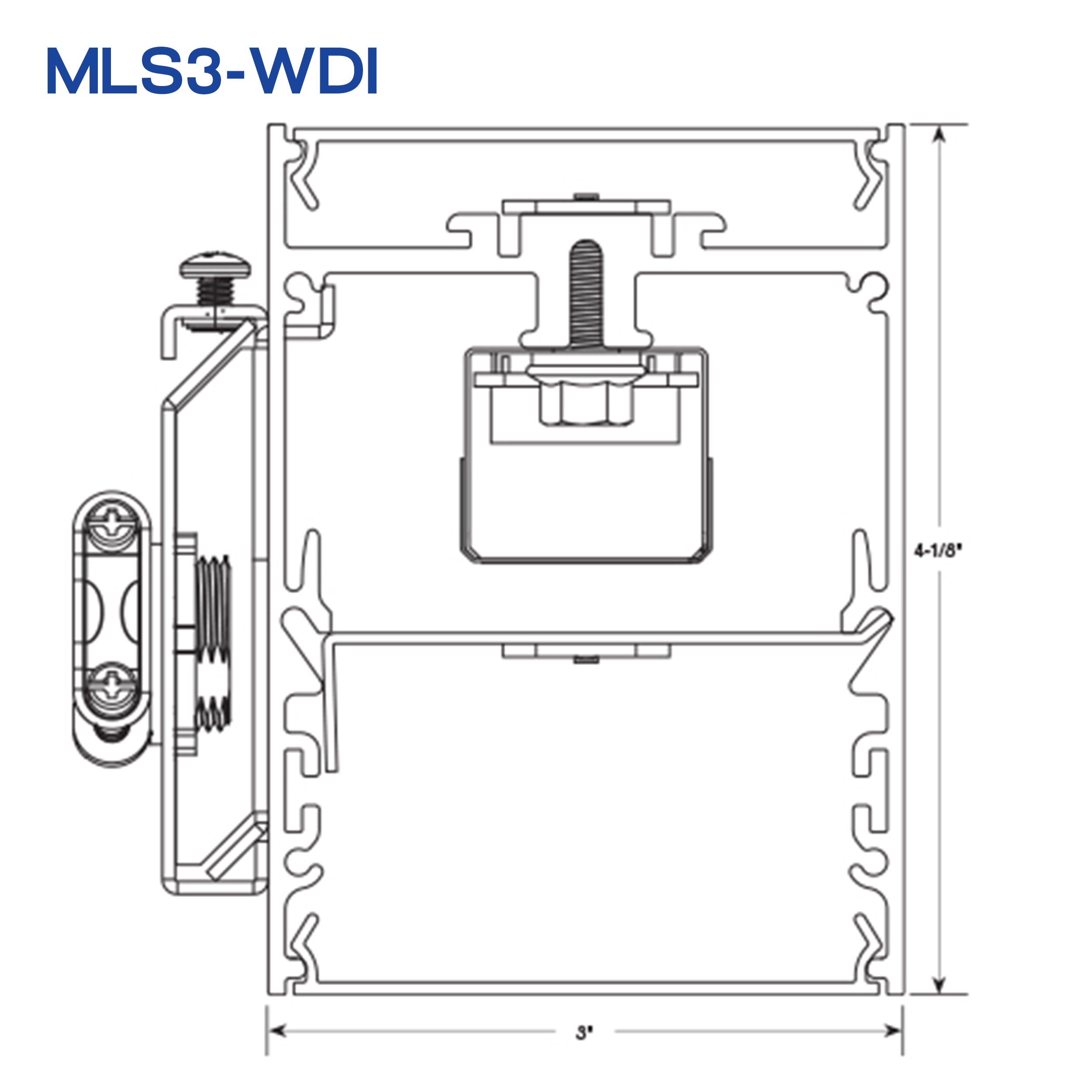

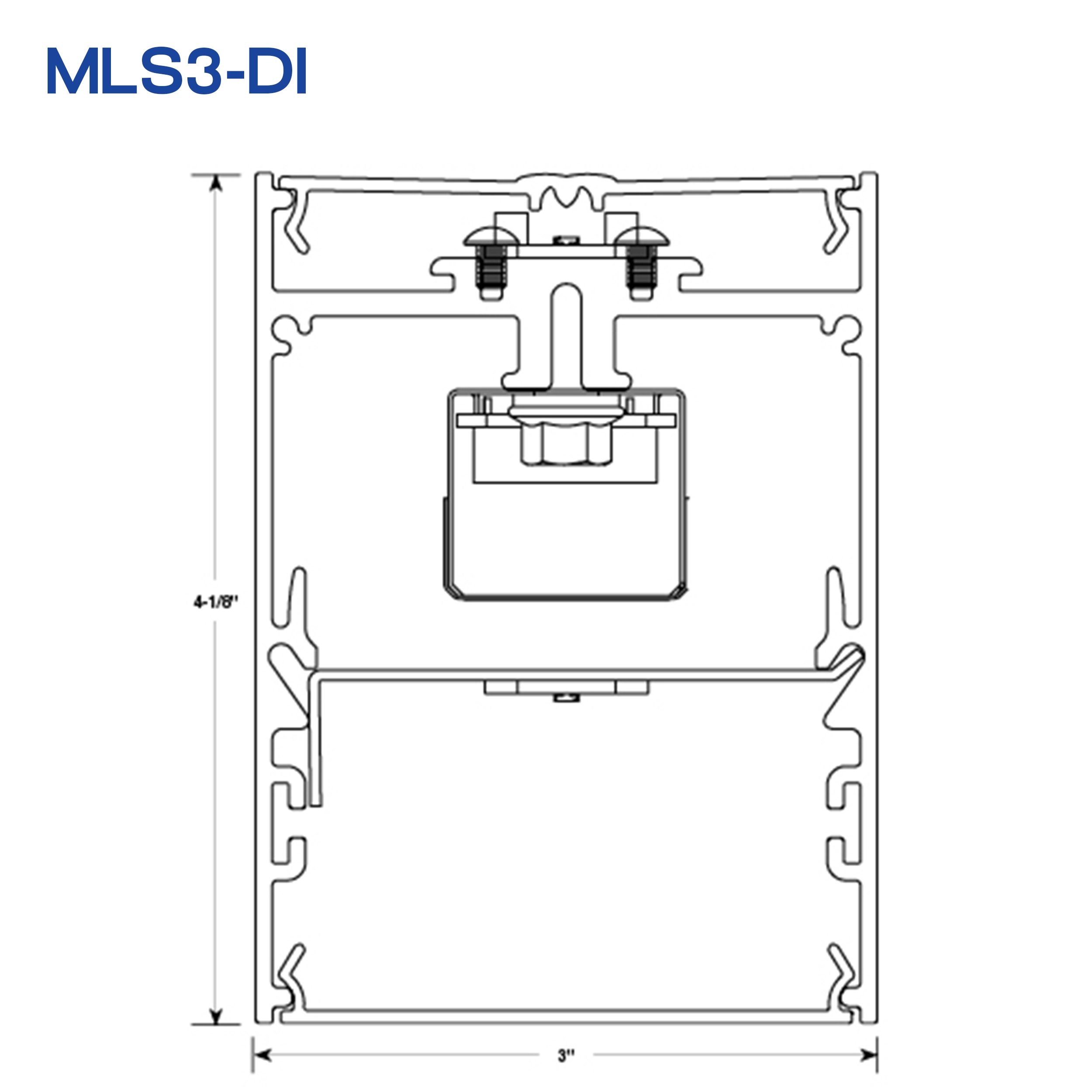

- A new extrusion with a shallower overall height of 2-1/8” and 4-1/8″.
- A new custom designed batwing-type indirect diffuser.
- Spreads light from the linear LED boards into two distinct side lobes. When projected onto the ceiling the results are a very consistent and wide spread of indirect illumination.
- New additional drop-down or pop-up diffuser options.
- Lightning Program eligible (ships in 15 days or less): See ordering data for options.
