CYL

CYL2/CYL4/CYL6
2” / 4” / 6”
Direct Distribution
Suspended / Surface mount

  • Aluminum with electrostatic powder coating.
  • White, gray, and black powder coat finish (custom powder coat color matching available).
  • Type of LED: COB
  • Color Temperature: 2700K, 3000K, 3500K, 4000K
  • CRI: 90
  • Input Voltage: 120VAC-277VAC
  • Operating Temperature: -4 to +104 °F
  • Continuous dimming capability down to 1% on 0-10V controls. Other dimming options are available.
  • Stem mount from ceiling. Available with round or square 5″ canopies.

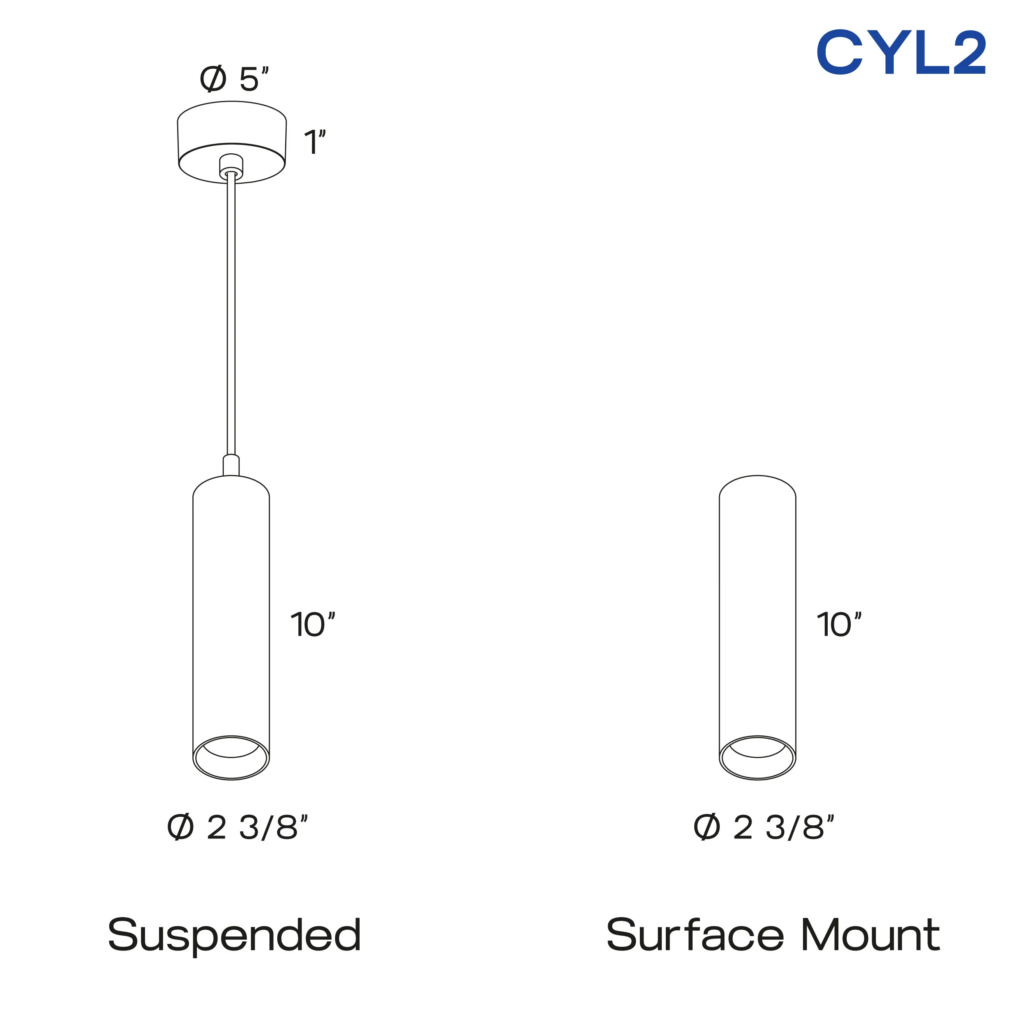

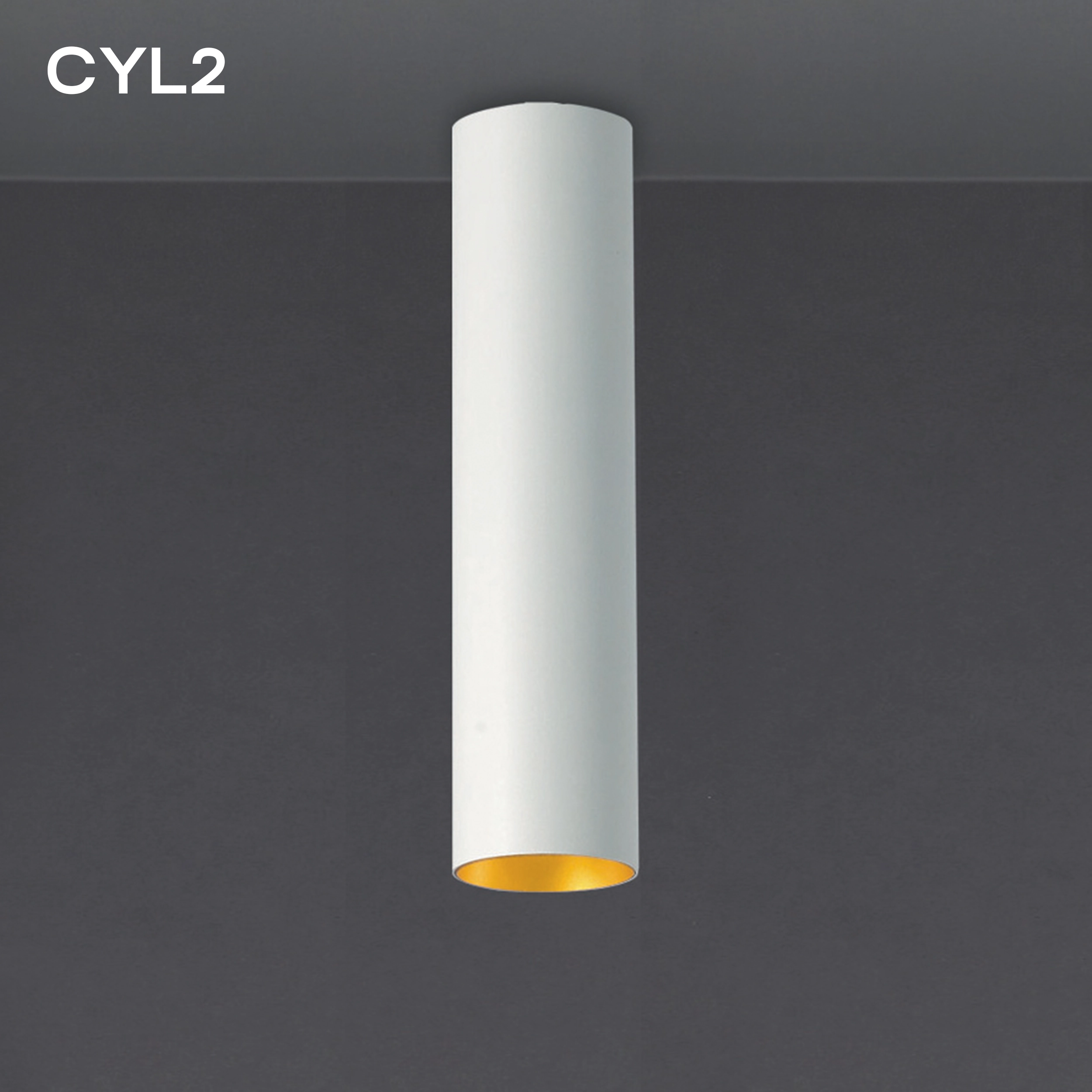

CYL2

 Suspended / Surface Mount

  • PC reflector
  • Wattage: 14W
  • Lumen Output: 1100 lm
  • Beam Angle: 15º, 27º, 38º

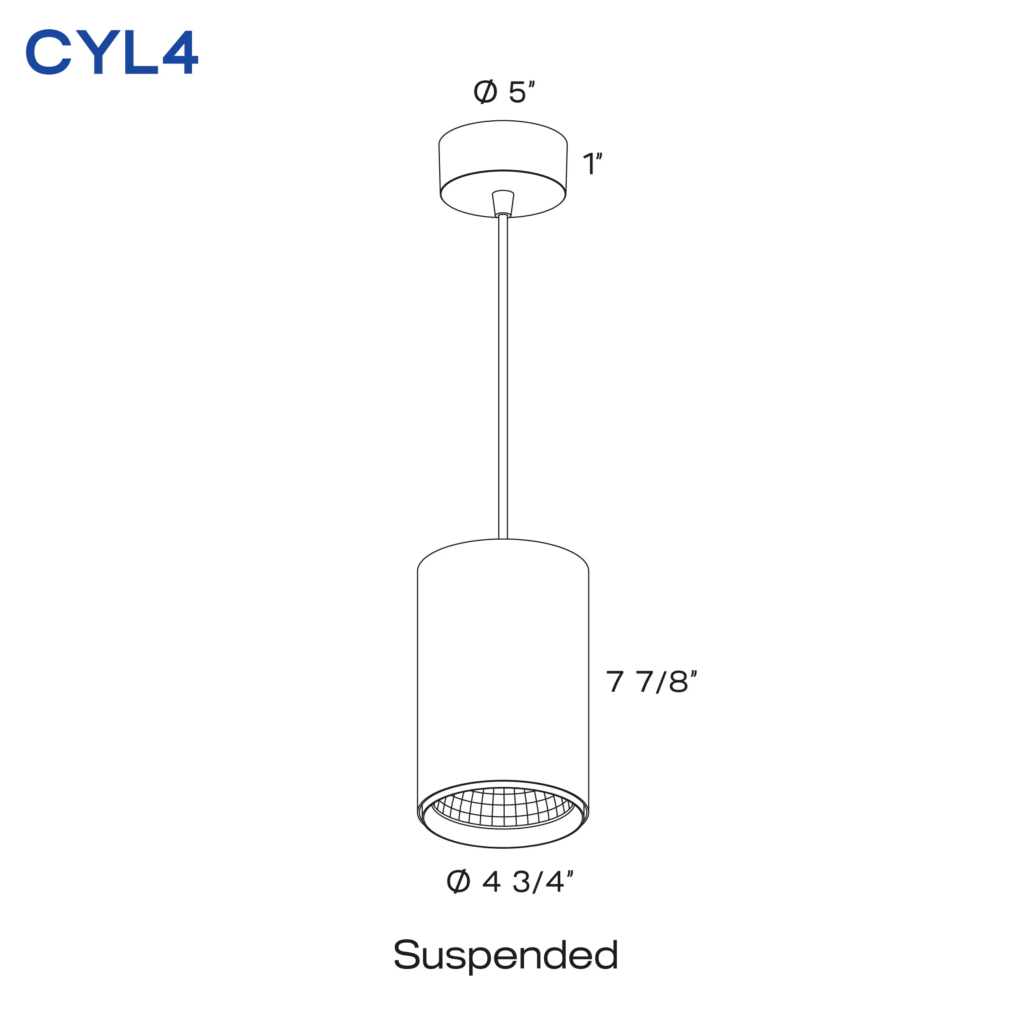

CYL4

 Suspended

  • Aluminum Anodized Specular Silver Reflector
  • Wattage: 31W
  • Lumen Output: 3000 lm
  • Beam Angle: 12º, 20º, 38º

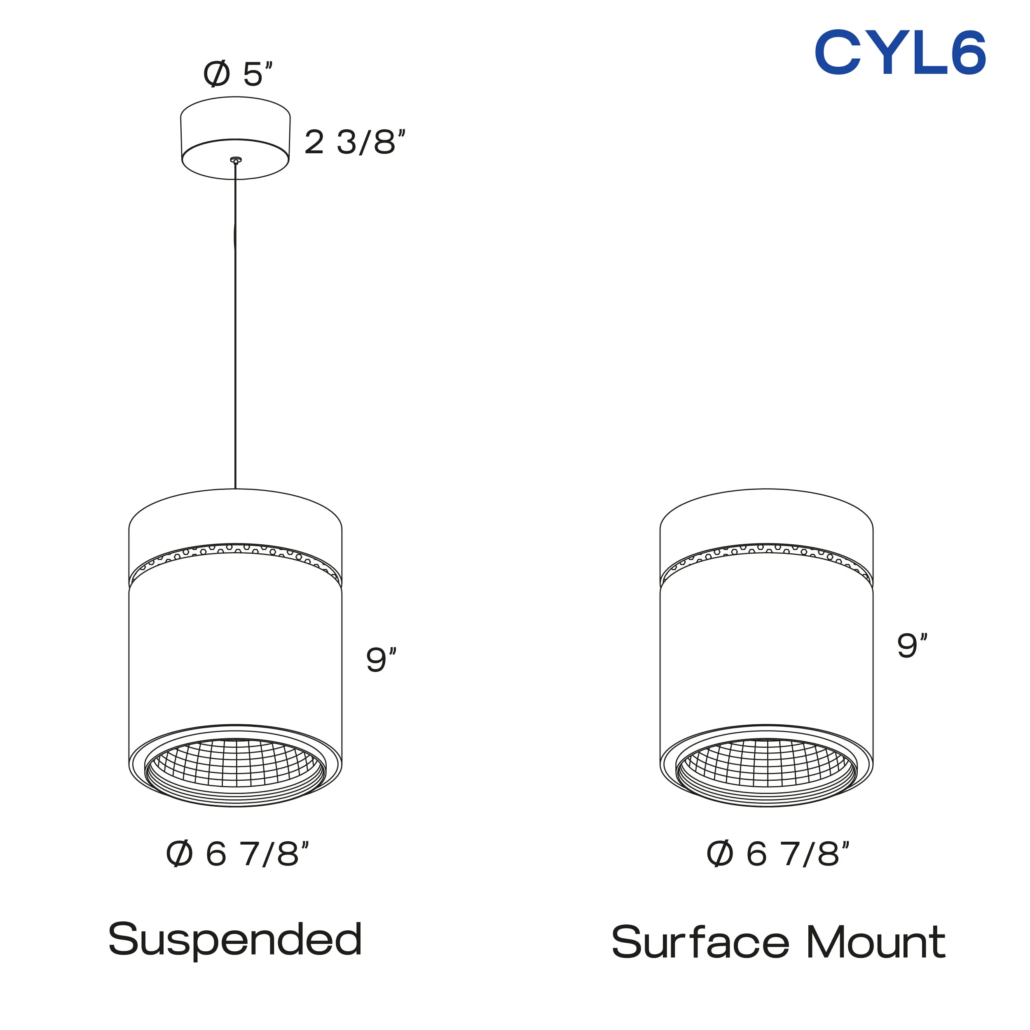

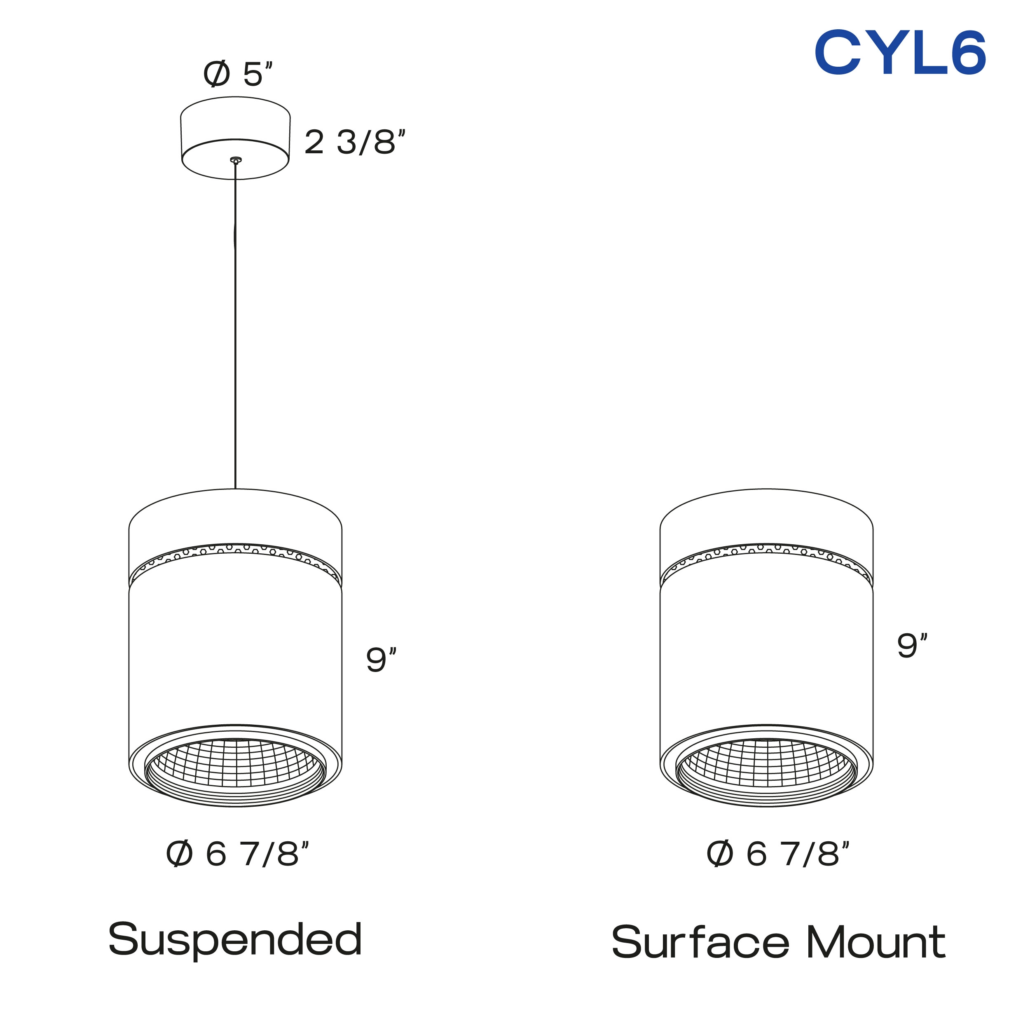

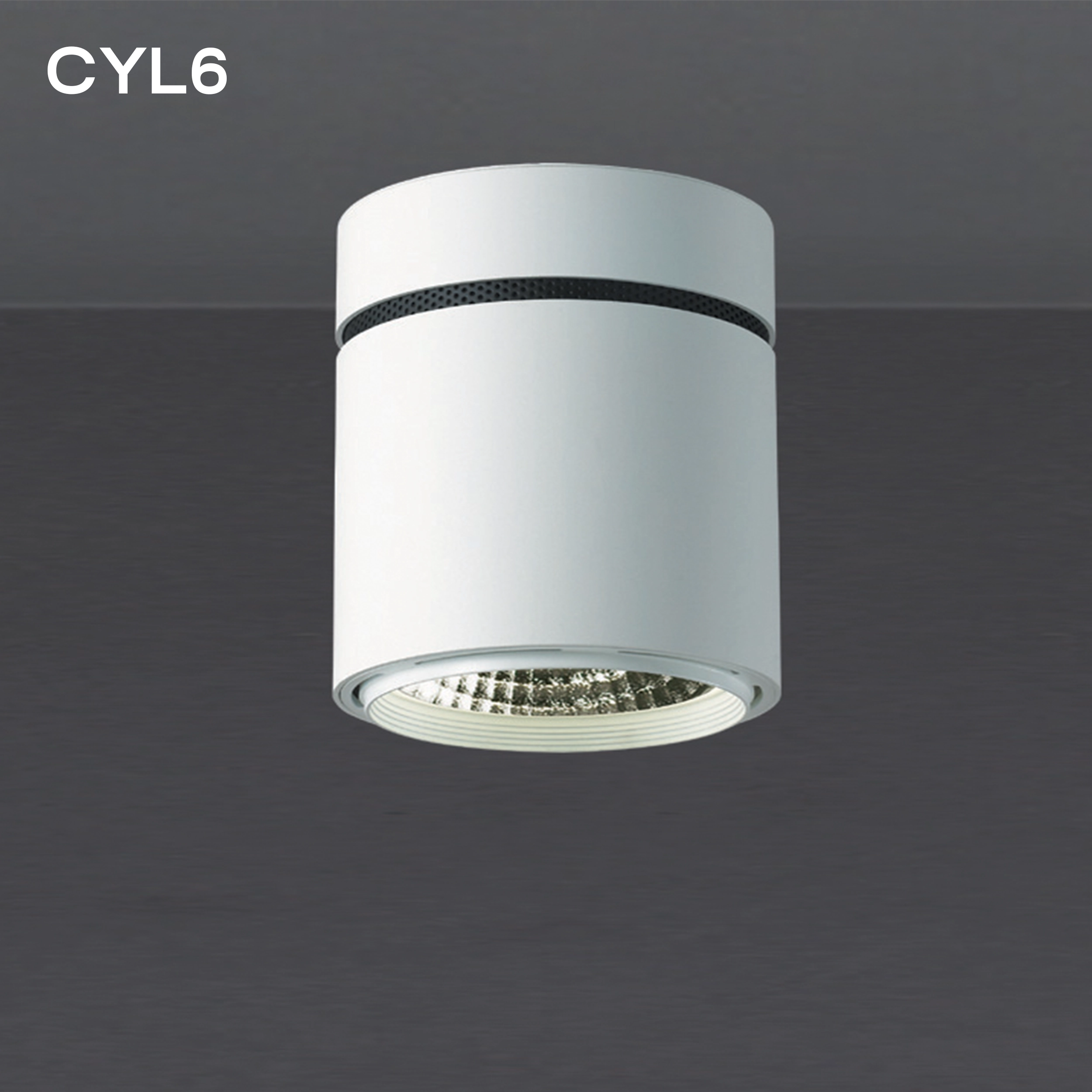

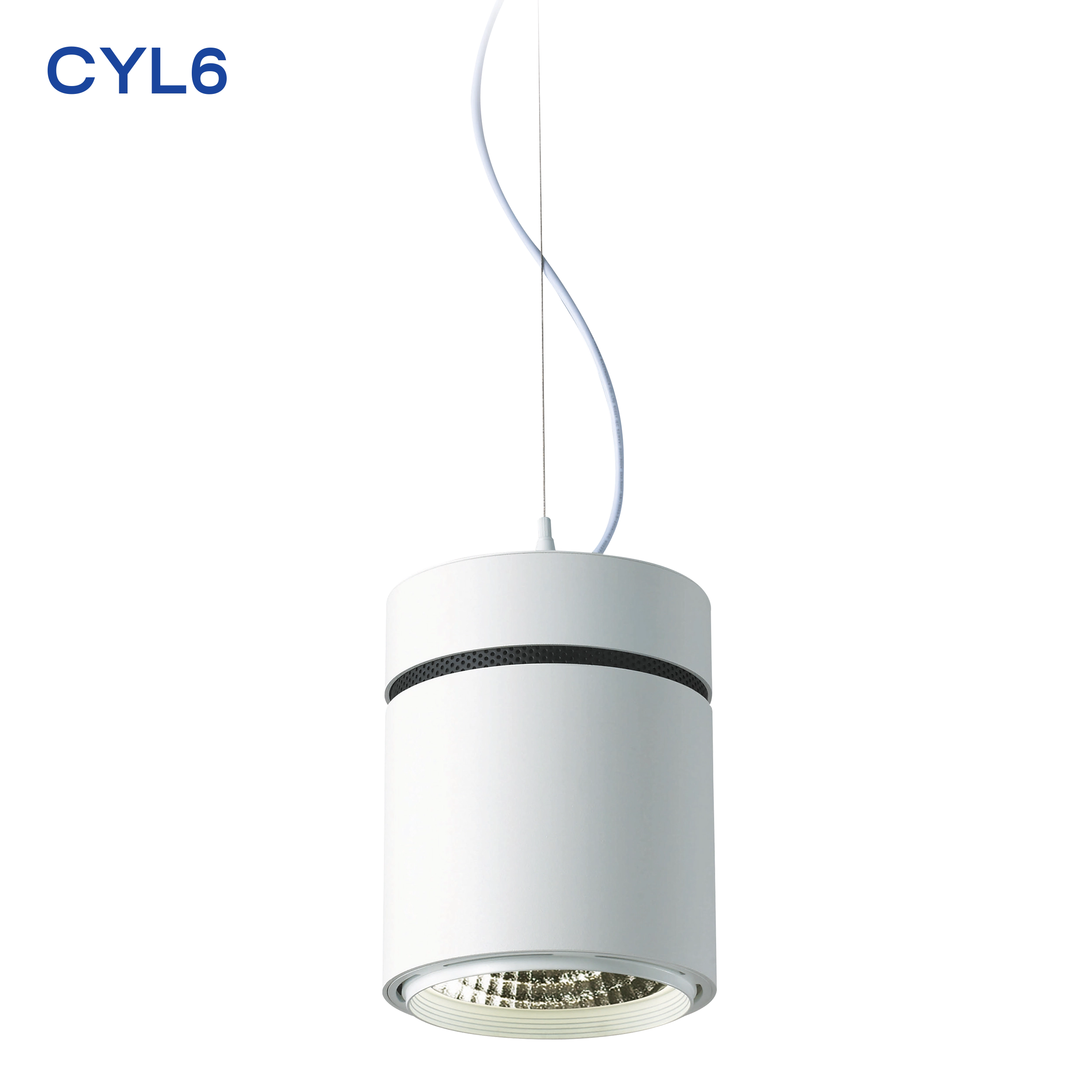

CYL6

 Suspended / Surface Mount

  • Aluminum Anodized Specular Silver Reflector
  • Wattage: 27W, 36W
  • Lumen Output: 2500 lm, 3400 lm
  • Beam Angle: 80º
  • Cable or stem mount from ceiling.
