CUP

CUP1 / CUP2
3” / 4”

  • Aluminum die-casting with electrostatic powder coating.
  • White, gray, and black powder coat finish (custom powder coat color matching available).
  • Type of LED: COB
  • Color Temperature: 2700K, 3000K, 3500K, 4000K
  • CRI: 90
  • Input Voltage: 120VAC-277VAC
  • Operating Temperature: -4 to +104 °F
  • Continuous dimming capability down to 1% on 0-10V controls. Other dimming options are available.
  • Adjustable Angle: Tilt 90°, Rotation 355°

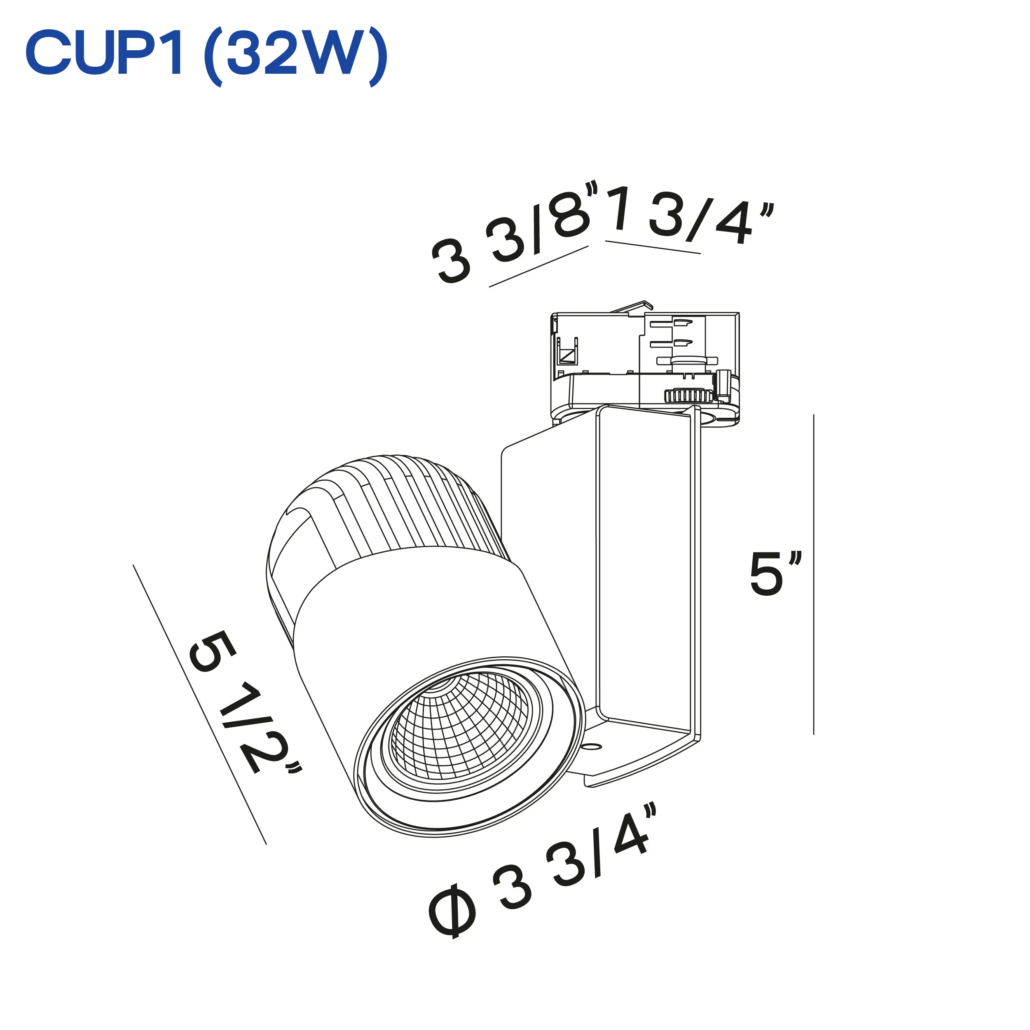

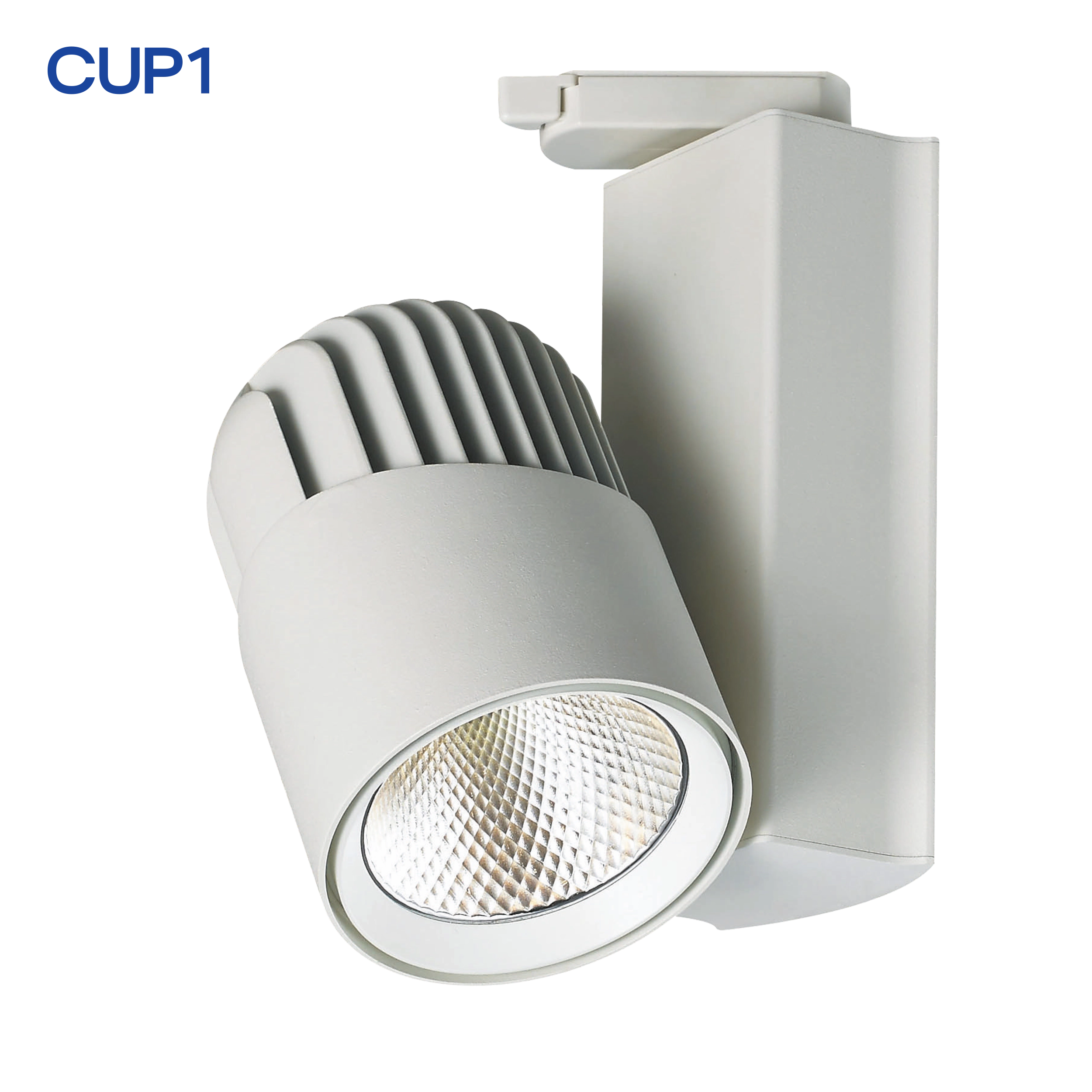

CUP1

  • Wattage: 32W
  • Lumen Output: 3400 lm, 3500 lm
  • Beam Angle: 18º, 26º, 34º

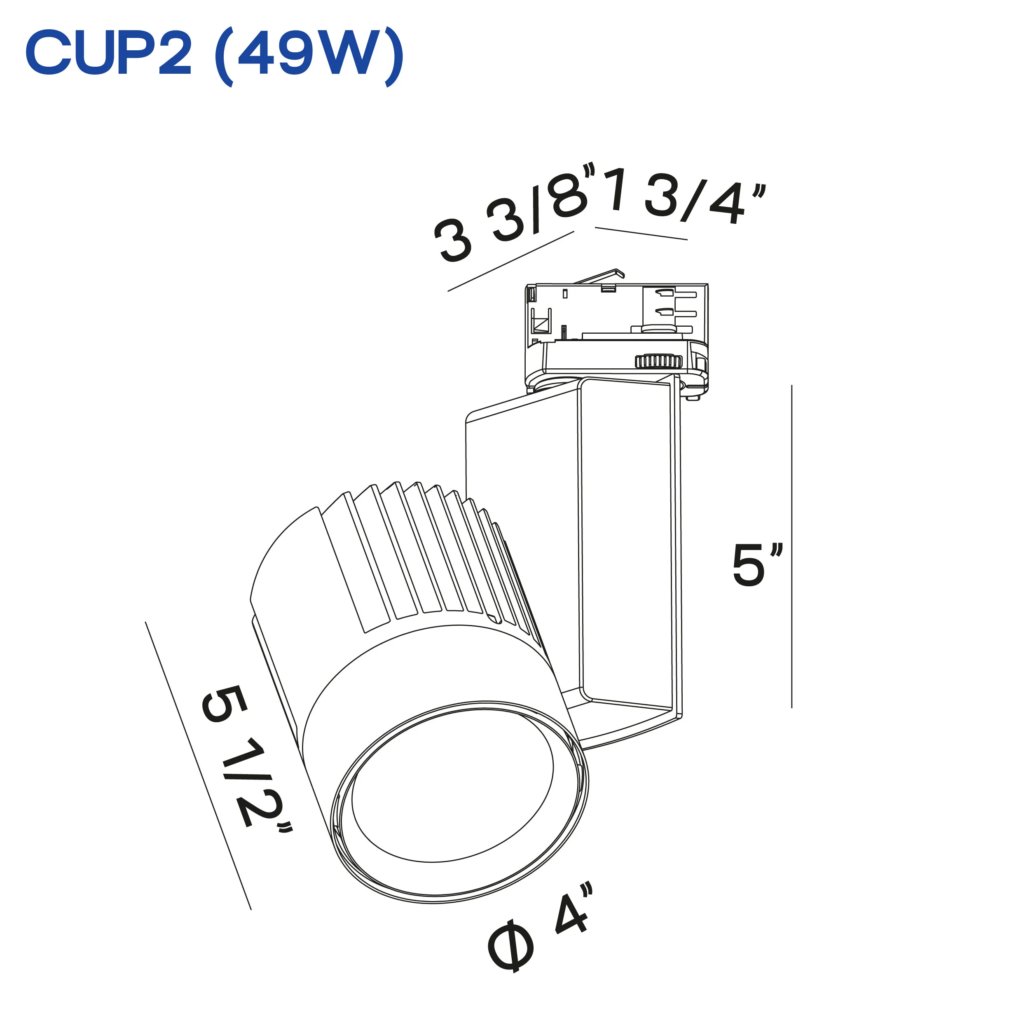

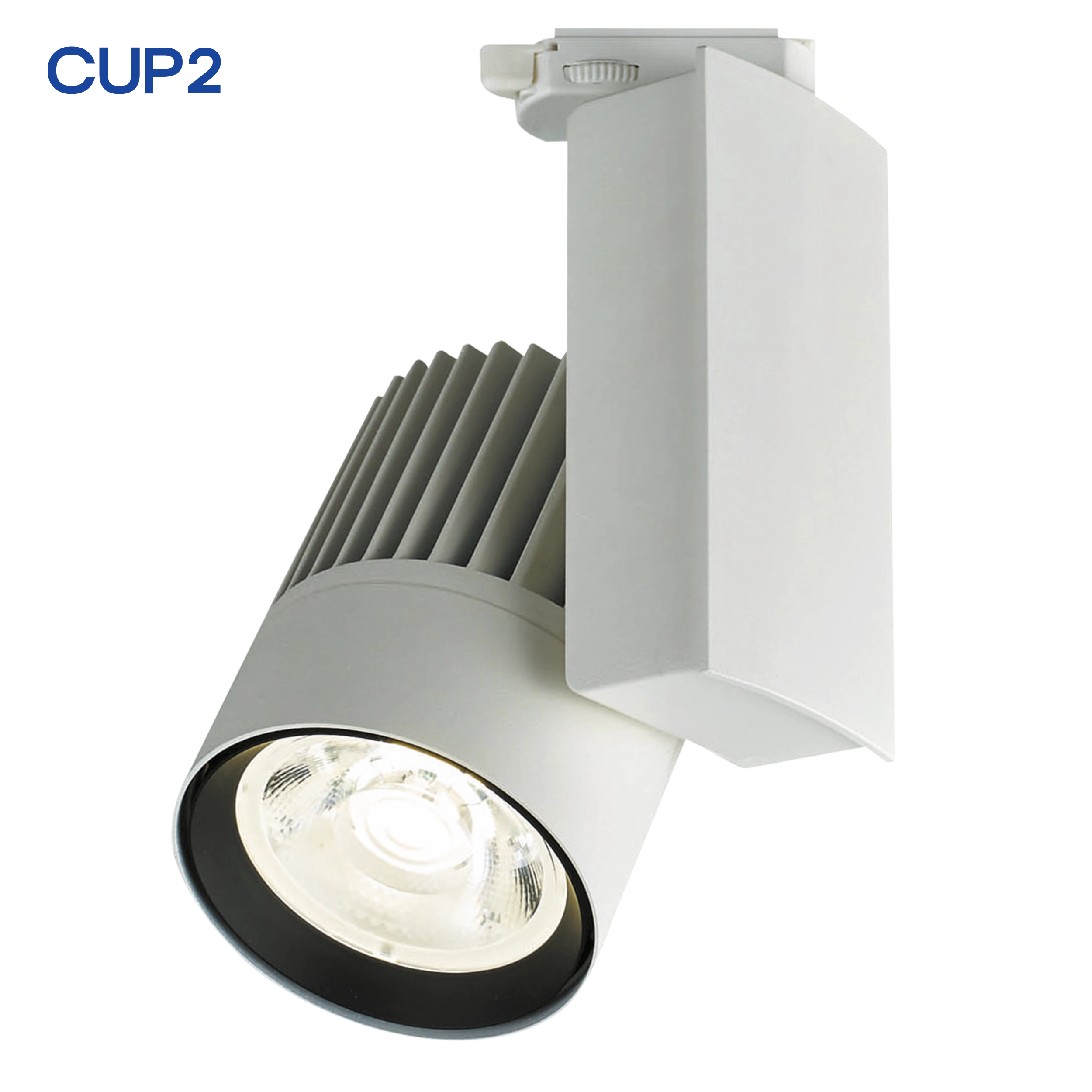

CUP2

  • Wattage: 49W
  • Lumen Output: 5200 lm, 5300 lm, 5400 lm,
  • Beam Angle: 25º, 34º, 42º
SPEC SHEET
